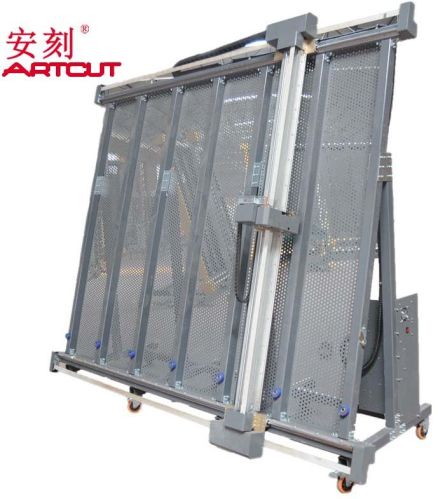

Vertical Glass Cutting Protect Film Plotter Ak2000d

We offer vertical glass cutting protect film plotter.
Model ak2000d
max.cutting wldth(mm) 1830*2440
weight(kg) 290
engraving tools knife
drawing command hp-gl g-code(*.plt *.eps *.dxf)
cutting speed(mmin) 0-12
mechanical precision(mm) 0.025
repeat accuracy(mm) 0.1
powersupply ac200v-ac240v50hz-60hz
oerating environment normal room temperature
support model vertical
dimension(mm) 3250*2250*1150
application fileds:
it is mainy uesd in the pattern engraving of the processing of art glass, such as sand blasting and fine carving, jade sand, ice engraving , emulsifying, coloured drawing or pattern color. (large and mediumsize glass processing customers)
product advantages
1.adopt korean high-quality circular rail & quadrate rail, american linear stepping motor. Movement resolution:0.025mm, repeatability precision:0.01.
2.intensity
adopt 5mm square steel, all parts are alloy, machine life can reach 10 years. No welded, no deformation by internal stress.
3.y-axis designed
y-axis used the newest cantilever type & siding track structure, it use single belt to drive, high power motor, the speed is more faster, the running of the machine is more stably, improve the precision and speed greatly.
4.speed
hongkong �vectorsoft� latest axis motion control board based on dsp. Engraving speed:18mmin,three times the ordinary machine.
5.control
humanism design of positioning device, tilting block, easy and safety for load & unload the glass.
the payment term
30% down payment shall be paid by tt in advance,the balance paid by tt before shipment
the packing
international standard wooden case packing
the goods delivery
during20 days after receive your advance deposit
after-sale service
the machine warranty for one year.
