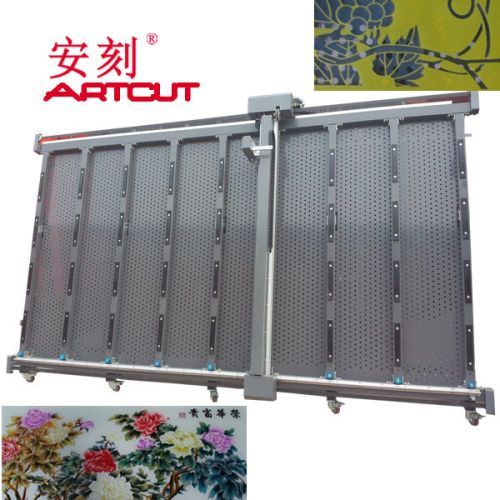

Vertical Glass Cutting Protect Film Plotter Ak3000d

We offer vertical glass cutting protect film plotter ak3000d.
Technical parameters
model ak3000d
max.cutting wldth(mm) 1830*3300
weight(kg) 340
engraving tools knife
drawing command hp-gl g-code(*.plt *.eps *.dxf)
cutting speed(mmin) 0-12
mechanical precision(mm) 0.025
repeat accuracy(mm) 0.1
powersupply ac200v-ac240v50hz-60hz
oerating environment normal room temperature
support mode vertical
dimension(mm) 3900*2250*1150
specification
vertical glass cutting plotter used to design on vinyl sticker,the machine work instead of traditional cutting plotter and hand plotting. Firstly stick the vinyl on glass,lean the glass against vertical glass cutting plotter,plot prepared graphic,tear off the spare sticker,then use defferent method,get different glass,such as sand blast glass,painting glass,acid etch glass,etc. The finished glass can be used as glass sliding door,glass partition, back ground wall and so on.
advantages
1.international standard steel frame 5 mm, the screw is fasten ,no welding, no deformation.
2.y-axis used newest cantilever type & siding track structure
3.single belt and high power moter to drive, the speed more fast and the running more stably.
4.the exclusive soft drop-knife system.
5.the main accessories of the famous brand in domestic and overseas.
The payment term
30% down payment shall be paid by tt in advance,the balance paid by tt before shipment
the goods delivery
during 20 working days after receive your advance deposit
the warranty limite time
one year during this time we can be free of providing the equipment parts, phone service, help on the line vedio ,remote control help etc.
