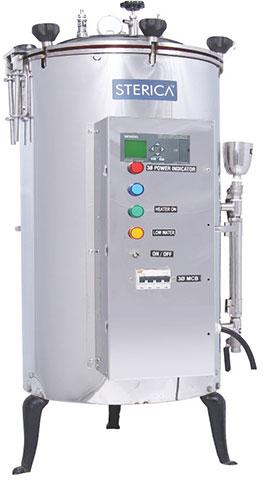

Vertical High Pressure Steam Sterilizer With Steam Storage

Description

1. Triple walled unit, the sterilizer consists of a chamber with steam jacket and outer insulation cover – all are made of heavy gauge SS304/316 grade stainless steel
2. Steam storage – Subsequent sterilization can be in quick succession as steam generated is retained even when the load chamber is opened
3. Standard features: Chamber condensate line with solenoid valve, steam release valve, pressure gauge, compound gauge, thermometer, sight glass, silicone gasket
4. Drying system – Mechanical ejector system for drying the working chamber
5. Safety devices: Pressure switch, safety valves, vacuum breaker, low water level cut-off
6. Working Pressure: 1.2 kgf/cm & 2.1kgf/cm
7. Working Temperature: 121°C / 134°C
8. Power Supply: 440 V, 3 Phase, 50 Hz AC Supply (Optional: 230 V, 1 Phase, 50 Hz AC Supply)
9. Hydrostatic Test: Hydraulically tested up to 2.5 times the working pressure
10. Features of Automatic Sterilizer: Manufactured in accordance with IS:3829 (Part 3) standards – for applicable models
    Automatic SIEMENS PLC based control system
    Sterilization pressure, temperature and drying time can be adjusted
    Automatic sterilization by pre-programming the cycle
    Digital display for pressure, temperature, power failure, low water, working time, end of sterilisation
11. Standards: BIS – IS:3829 Latest Edition with ISI mark
12. Documentation: User manual, Warranty Certificate, Hydraulic Test Certificate, Calibration Certificate
13. Optional: Guide wire attachment for vertical sterilizers. High speed (134°C) available in select models
