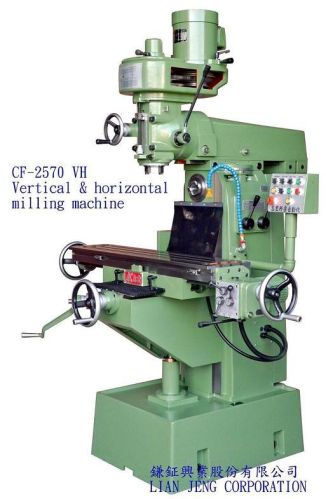

Vertical Horizontal Milling Machine CF-2570VH/VHU

We are offering vertical horizontal milling machine models (cf-2570vhvhu)
table
working surface of table 250mm×1100mm
longitudinal travel 700mm
transfer travel 280mm
vertical travel 485mm
range of longitudinal feed speed(mm) 30~825mmmin (9steps)
range of longitudinal rapid speed(mm) 1300mmmin
table will swivel(r & l) 30°
vertical spindle
spindle nose n.t.#40
spindle speed(8 steps)r.p.m 210-3440(60hz) 170-2860(50hz)
distance from spindle end to table top 80-565mm
distance from spindle center to column 150-500mm
vertical travel of quill surface 125mm
swiveling angle of head(right & left) 90°
cross travel of ram 350mm
horizontal rotation angle or ram 360°
horizontal main spindle
range of spindle speeds(6 speeds)(r.p.m) 60cs(50~1180)50cs(40~980)
taper of spindle bore nt40#
spindle center to table 0~485mm
spindle center to over arm bottom 115mm
motor
horizontal milling(vertical milling head) 3hp
table longitudinal feed 12hp
coolant pump 18hp
net weight(approx) 1300kg
gross weight 1400kg.
