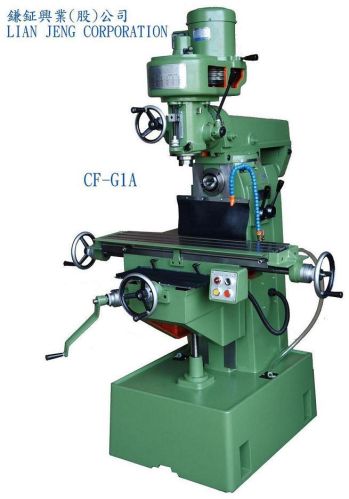

Vertical & Horizontal Milling Machine

We are offering horizontal milling machine, vertical milling machine etc.
models (cf-g1a)
table
working suface(length × width) 1000×230mm
table travel(xyz) 600×230×400mm
t-slots 16mm×3
vertical spindle
sptndle nose n.t.#40
spindle speed(8 steps)r.p.m 210-3440(60hz)
170-2860(50hz)
distance from spindle end to table top 50-535mm
distance from spindle center to column 150-450mm
vertical travel of cluill surface 125mm
swivelling angle of head(right & left) 90°
cross travel of ram 230mm
horizontal rotation angle or ram 360°
horizontal spindle
spindle nose n.t.#40
spindle speed(6 steps)r.p.m 50-1180(60hz)
40-980(50hz)
distance from spindle center to table top 0-470mm
distance from spindle center to ram bootom 120mm
motors
for vertical spindle 1.5kw(2hp)-4p8p
for horizontal spindle 1.5kw(2hp)-4p
for table feed 0.4kw(12hp)-4p
for cutting fluid pump 0.1kw(18hp)-4p
size of machine
net weight 1,300kg
dimensions of packing case 1400×1350×1830mm
