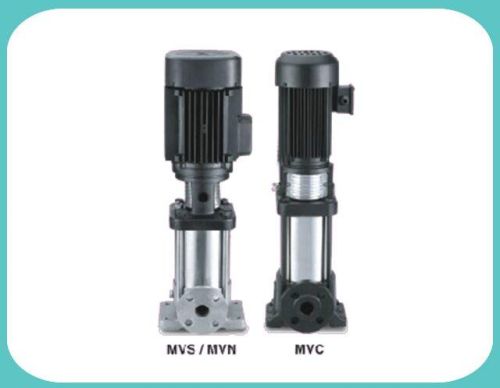

Vertical Inline Pumps

C.R.I.’s vertical multistage centrifugal pumps or Verticle Inline Pumps (MV Series) are non-self-priming axial suction and delivery type available with DIN standard for connection. All components like impeller, diffuser & shaft of these pumps are made of corrosion resistant AISI Stainless Steel and designed to deliver the best possible hydraulic efficiency. ‘O’ ring and gasket prevents leakage at the intermediate casing during high pressure.

These Verticle Inline Pumps are powered by a totally enclosed fan cooled A.C. induction motor, suitable for continuous Duty. The motor stator is made of low watt loss steel lamination assembled under pressure and rigidly locked in the frame. Dynamically balanced rotor ensures vibration and noise-free operation.

Specifications:

• Power Range: 0.5 HP-60 HP
• Speed: 3450rpm
• Versions: AC Single phase-230 V, 60 Hz Permanent Split Capacitor(PSC),
  Inbuilt Thermal Overload Protector, A.C. Three Phase – 460 V, 60 Hz
• Duty: S1(continuous)
• A degree of Protection: IP 55(Optional IP44, IP54)
• Max. Flow: Up to 530 US GPM
• Max. Head: 980 ft
• Max.Suction Lift: 23 ft
• Sealing Type: Mechanical Seal (Cartridge Type)
• Max.Liquid Temperature: -4°C to +248°C
• Max.Ambient Temperature: 104°C
• Max.Operating Pressure: 427 psi
• Flanch Standard: DIN
• Pipe Connections: DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100

• High operating efficiency
• Precise parts of hygiene
• Good suction lift and operating pressure
• Dynamically balanced rotating parts
• Balanced & Rigid construction
• Available MOC : S,N & C
