Metal Rafamet Vertical Lathe Machine

Get Latest Price

MaterialMetal
Number Of FlowerVertical Lathe Machine
ModelKCF320
Max Workpiece Weight25,000 Kg
Supply TypeExporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Gorbrex Machinery Trade Sp. z o.o.

Rudniki

View Number

Member Since 22 Years
Nature of Business Exporter
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerVertical Lathe Machine
MaterialMetal
ModelKCF320
Rapid Feed Of Vertical Carriages910 Mm/min
Rapid Feed Of Side Carriage1250 Mm/min
Table Diameter3200mm
Max Workpiece Weight25,000 Kg
Max Turning Height1850mm
Rapid Feeds Of Transversal Beam580 Mm/min
Main Motor Power55 KW, 1500 Rpm
Feeds Of Vertical Right Carriage And Side Carriage0.24 - 10.6 Mm/min
Dimensions7730 X 6240 X 6700 Mm
Machine Weight70,000 Kg
Feed Of Left Vertical Carriage0.185 - 8.16 Mm/min
Max Turning Diameter With Vertical Carriage3500mm
Max Distance Between Table And Transversal Beam2000mm
Max Turning Diameter With Side Carriage200mm
Number Of Feeds12

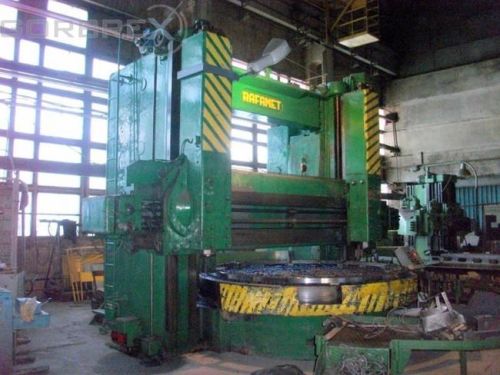

We are offering vertical lathe machine rafamet model: kcf320.
manufacturer: rafamet
model: kcf 320
new in: 1966 / modernization in year 2008
condition : good, machine is under power, ready to work
equipment: 3 supports
table diameter: 3200mm
max. Turning diam. With vertical carriage: 3500mm
max. Turning diam. With side carriage: 200mm
max. Turning height: 1850mm
max workpiece weight: 25 000 kg
feeds number: 12
feeds of vertical right carriage and side carriage: 0,24 - 10, 6 mm/min
feed of left vertical carriage: 0,185 - 8,16 mm/min
rapid feed of vertical carriages: 910 mm/min
rapid feed of side carriage: 1250 mm/min
rapid feeds of trasversal beam: 580 mm/min
max distance between table and trasversal beam: 2000 mm
machine weight: 70 000 kg
dimensions: 7730 x 6240 x 6700 kg
main motor power:
55 kw , 1500 rpm
