Metal Rubber Vertical Lathe Machine

Get Latest Price

MaterialMetal and Rubber
Number Of FlowerVertical Lathe
Max Ram Travel Side Carriage700 Mm
Max Workpiece Height1000 Mm
Supply TypeExporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Gorbrex Machinery Trade Sp. z o.o.

Rudniki

View Number

Member Since 22 Years
Nature of Business Exporter
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerVertical Lathe
MaterialMetal and Rubber
Number Of Table Speed Ranges18
Max Turning Diameter1250 Mm
Number Of Carriage Feed Ranges16
Max Swivel Angle45 Degrees
Net Weight16000 Kg
Dimensions2750/2975/4100
Table Diameter1120 Mm
Max Ram Travel Side Carriage700 Mm
Max Carriage Feed12.5 Rpm
Max Vertical Feed1000 Mm
Max Workpiece Weight At 5-80 Rpm3200 Kg
Max Table Speed25 Rpm
Max Ram Travel Upper Carriage630 Mm
Max Workpiece Weight At 250 Rpm1000 Kg
Main Motor Power30 KW
Max Workpiece Height1000 Mm

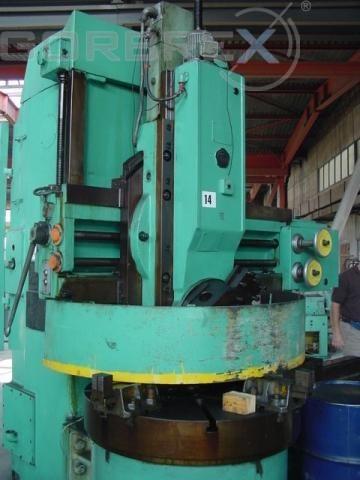

We are offering vertical lathe machine - sedin 1512.
Table diameter 1120 mm
max. Turning diameter 1250 mm
max. Workpiece height 1000 mm
max. Swivel angle: 45o
max. Vertical feed: 1000 mm
max. Workpiece weight
at rpm 5-80: 3200 kg
at rpm 250: 1000 kg
max. Ram travel
upper carriage: 630 mm
side carriaga: 700 mm
number of ranges of table speed: 18
max. Table speed: 25 rpm
number of ranges of carriage feeds: 16
max. Carriage feed: 12,5 rpm
main motor power: 30 kw
net weight: 16 000 kg
dimensions: 2750/2975/4100
