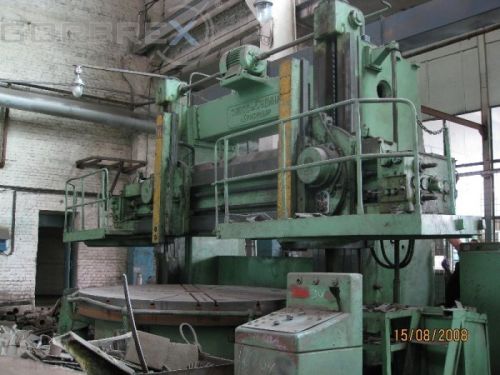

We are offering vertical lathe machine sedin model: 1m557.
manufacturer: sedin - russia
model: 1m557
new in: 1979
condition: excellent condition, under power
table diameter: 2 800mm
max workpiece diameter: 3 200mm
max turning diameter with vertical carriages: 3 200mm
max workpiece height: 1 600mm
max workpiece weight: 16 000kg
distance between the middle of the table and column : 475 mm
distance between table and turret head or bottom edge of vertical carriage : 1 340 mm
distance between table and the bottom edge of transversal beam: 1 340 mm
boring diameter with turret head or vertical carriage : 1 900 mm
boring diameter with turret head or vertical carriage : 2 300 mm
turning diameter with horizontal carriage: 2 000 mm
max turning length with horizontal carriage: 1 100 mm
max turning length: 1 300 mm
taper: 45
turret head rapid feed: 3 m/min
transversal beam rapid feed: 0,5 m/min
max travel of transversal beam: 990 mm
machine weight: 35 000 kg
dimensions: 4085x5460x4250 mm
