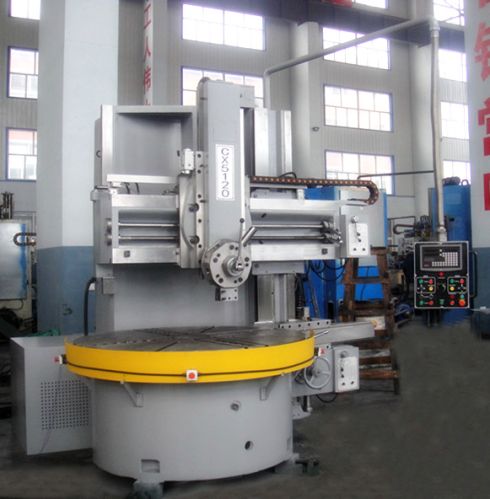

Vertical Lathe Machines

We are offering vertical lathe machines.
main technical specification
no. name value
1 max. Turning diameter (mm) 2000
2 table diameter(mm) 1800
3 max. Working height of workpiece(mm) 1200/1400
4 max. Weight of workpiece (t) 8
5 speed range of table(r/min) 3.5~110
6 speed-step of table 16
7 feed range of railhead and side head (mm/min) 0.8~86
8 max. Cutting resistance of railhead(kn) 25
9 max. Cutting resistance of side head (kn) 20
10 max. Torque(kn•m) 32
11 travel of railhead (mm) horizontal 1050
(mm)vertical 800(turret)/1000(ram)
12 travel of side head (mm) horizontal 630
(mm)vertical 1150
13 travel of crossbeam(mm) 890/1050
14 moving degrees limit of railhead(°) ±30
15 rapid traveling speed of railhead and side head (m/min) 1.8
16 moving speed of crossbeam(m/min) 0.44
17 sectional size of tool bar(w×h)(mm) 30×40
18 power of main motor(kw) 30
19 overall dimensions (l×w×h)(mm) 3100×2800×3010
(3210)
20 weight of machine(about t) 15
