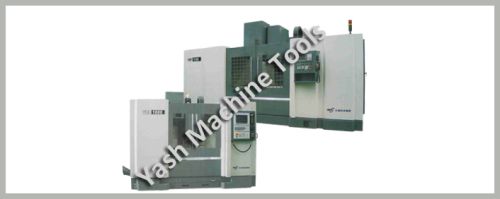

Contact SupplierYash Machine Tools presents WM series vertical machining center/CNC Milling equipment, DMTG vertical machining center a unique machining device designed for milling with tight-tolerance. It is one of the high-precision milling machines provided with vertically orienting spindle. It supports for milling towards accurate and stable machining way and to accommodate complete work materials like ceramics. We provide 6 models of WM series vertical machining centre with CNC milling feature. These models are featured with different dimensions of specifications to accommodate wide range of workpiece. Each model is designed with different table load capacity to accept corresponding weight of work material so that the precision in machining remains undisturbed.
Â
Â
Yash Machine Tools is a well-known machine supplier in India and we have the most sought for workshop machines in different models. Our vertical machining centre/CNC milling device has been designed with attractive features to carry on with accurate machining, speedy performance and support continuous production needs in different industries. Every aspect of specification bears a reason for its presence. Some of the important specifications are given below.
We provide exclusive set of gadgets for WM series vertical machining center machine models to experience sustained machining and the standard accessories includes half guarding, air blowing system for spindle, foundation bolt and heel block and coolant system. Optional accessories enhance the performance of equipments. At Yash Machine Tools we supply the following optional accessories for vertical milling center/CNC milling machine such as the full guarding instead of standard half guarding, electric cabinet constant temperature control device (to constantly control or stabilize the frequency of temperature of the device at the time of machining), and with maximum spindle speed capacity of about 10000 rotations per minute. Our service does not stop with supplying machines and accessories as we move a step ahead in terms of offering best customer support and providing spares for the already existing equipments. Consumers who are investing in workshop machines do not have to search for another supplier for buying spare parts as Yash Machine Tools is the right location to find workshop machines and machine related gadgets.
Product Code | WM 05/ VM 10 F | WM 05 / VM 12 F | WM 05 / VM 15 F | WM 05 / VM 18F | |
Model No. | VDF-1000 | VDF-1200 | VDF-1500 | VDF-1800 | |
Table Size (L*W) | mm | 1120X560 | 1220X620 | 1700X800 | 2000X800 |
T-slot (Numbers *width* Distance) | b/t slots | 5X18X100 | 5X18X100 | 6X18X125 | 6X18X125 |
Max. Table load | kg | 750 | 1200 | 2500 | 2500 |
The distance from spindle center line to column guideway surface | mm | 629 | 660 | 850 | 850 |
The distance from spindle nose end face to table upper surface | mm | 135 ~ 735 | 90 ~ 765 | 200 ~ 962 | 180 ~ 942 |
X/Y/Z travel | mm | 1020/560/600 | 1200/600/675 | 1530/800/762 | 1850/800/762 |
X/Y/Z guideway type | box way | box way Y-axis-4 Rails |
box way Y-axis-4 Rails |
box way Y-axis-4 Rails |
|
X/Y/Z rapid traverse | m/min | 24/24/18 | 20/20/18 | 15/15/12 | 15/15/12 |
Feed rate | Mm/min | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 6000 | 1 ~ 6000 |
X/Y/Z servo motor torque | Nm | 12/12/12 | 22/22/22 | 22/22/22 | 22/22/22 |
Spindle motor power | kW | 7.5/11 | 11/15 | 11/15 wide range motor | 11/15 wide range motor |
Spindle speed range | r/min | 60 ~ 8000 | 45 ~ 6000 | 45 ~ 6000 | 45 ~ 6000 |
Spindle taper | #40(7/24) | #50(7/24) | #50(7/24) | #50(7/24) | |
Tool magazine capacity/type | 20/drum 24 /swing arm |
24 /swing arm | 24/ swing arm | 24/swing arm | |
Tool adaptor type | BT40 | BT50 | BT50 | BT50 | |
Max. tool weight | Kg | 7 | 15 | 15 | 15 |
Max. tool diameter/length | Mm | Φ77/305swing arm | Φ127/305swing arm | Φ110/350swing arm | Φ110/350swing arm |
Time of tool Change (T-T) | Sec | 6 ~ 8/3 | 3.5 | 3.5 | 3.5 |
Air pressure requirement | MPa | 0.6 | 0.6 | 0.6 | 0.6 |
Power requirement | kVA | 25 | 35 | 40 | 40 |
Overall dimension (L*W*H) | mm | 2820X2820X 2477 | 2880X2815X 2791 | 4300X3480X3120 | 5160X3480X3120 |
Net Weight | kg | 8000 | 8500 | 14000 | 14500 |
Product Code | WM 05 / VM 50 |
WM 05 / VM 60A |
WM 05 / VM 80 |
WM 05 / VM 10 |
WM 05 / VM 12 |
WM 05 / VM 14A |
|
Model No. | VDL-500 | VDL-600A | VDL-800 | VDL-1000 | VDL-1200 | VDL-1400A | |
Table Size (L*W) | mm | 700X320 | 800X420 | 900X420 | 1120X560 | 1220X620 | 1450X620 |
T-slot (Numbers *width* Distance) | b/t slots | 3X14X110 | 3X18X125 | 3X18X125 | 5X18X100 | 5X18X100 | 5X18X100 |
Max. Table load | kg | 150 | 500 | 500 | 750 | 1500 | 1500 |
The distance from spindle center line to column guideway surface | mm | 430 | 511 | 511 | 629 | 660 | 660 |
The distance from spindle nose end face to table upper surface | mm | 140 ~ 520 | 150 ~ 670 | 150 ~ 670 | 135 ~ 735 | 100 ~ 775 | 100 ~ 775 |
X/Y/Z travel | mm | 450/350/380 | 600/420/520 | 800/420/520 | 1020/560/600 | 1200/600/675 | 1400/600/675 |
X/Y/Z guideway type | Linear way | Linear way | Linear way | X/Y: Linear way Z: box way |
X/Y: Linear way Z: box way Y-axis-3 Rails |
X/Y: Linear way Z: box way Y-axis-3 Rails |
|
X/Y/Z rapid traverse | m/min | 30/30/30 | 24/24/20 | 24/24/20 | 24/24/18 | 24/24/18 | 24/24/18 |
Feed rate | mm/min | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 10000 |
X/Y/Z servo motor torque | Nm | 4/4/8 | 12/12/12 | 12/12/12 | 12/12/12 | 22/22/22 | 22/22/22 |
Spindle motor power | kW | 3.7/5.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 11/15 |
Spindle speed range | r/min | 60 ~ 10000 | 60 ~ 8000 | 60 ~ 8000 | 60 ~ 8000 | 45 ~ 6000 | 45 ~ 6000 |
Spindle taper | #40(7/24) | #40(7/24) | #40(7/24) | #40(7/24) | #50(7/24) | #50(7/24) | |
Tool magazine capacity/ type | 12/drum | 16/drum 24 swing arm |
16/drum 24 swing arm |
20/drum 24 /swing arm |
24 /swing arm | 24 /swing arm | |
Tool adaptor type | BT40 | BT40 | BT40 | BT40 | BT50 | BT50 | |
Max. tool weight | Kg | 6 | 7 | 7 | 7 | 15 | 15 |
Max. tool diameter/length | Mm | Φ80/150drum | Φ100/280drum Φ77/280swing arm |
Φ100/280drum Φ77/280swing arm |
Φ100/305drum Φ77/305swing arm |
Φ127/305swing arm | Φ127/305swing arm |
Time of tool Change (T-T) | Sec | 6 ~ 8 | 6 ~ 8/3 | 6 ~ 8/3 | 6 ~ 8/3 | 3.5 | 3.5 |
Air pressure requirement | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Power requirement | kVA | 15 | 25 | 25 | 25 | 35 | 35 |
Overall dimension (L*W*H) | mm | 2450X 1590X 2200 |
2310X 2040X 2337 |
2310X 2040X 2337 |
2530X 2820X 2500 |
2880X2 405X 2901 |
3300X24 05X 2901 |
Net Weight | kg | 2000 | 4800 | 5200 | 7000 | 8000 | 8500 |
