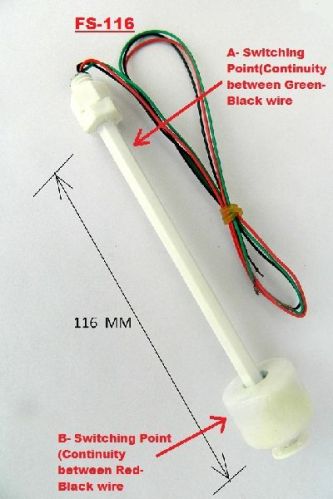

Vertical Magnetic Float Sensor (FS-116)

₹ 95 - ₹ 110 / Piece

MOQ200 Piece(s)
Price Per Piece With PVC WireRs.95/-
Basic PriceExclusive of GST 18%
Price Per Piece With Teflon WireRs.110/-
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

With immense knowledge and expertise in this domain, we have made our position in the domestic market by providing Magnetic Float Sensor Vertical (FS-116). Buyers can stay rest assured about the quality of our products as we check each and every product at diverse stages.

Specification

Electrical Characteristics
Contact Form	A (Normally Open) & B (Normally Close) with Double Switch
Contact Rating, Max	10 W (50 W on Demand)
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	<10VDC and <50mAmp DC
Life expectancy- Switching cycles, Minimum	0.5 x10⁶
Installation	Vertical
Wire length	1 meters (TEFLON)
Customization	Available on Demand
Material
Housing	PP (& Stainless Steel)
Float	PP Foam (& Stainless Steel)
Potting	PU/ Epoxy
Basic Price(Exclusive of GST 18%)
Rs.95-Rs.110/-	Per Piece (Min. Qty.- 200 Pieces)
