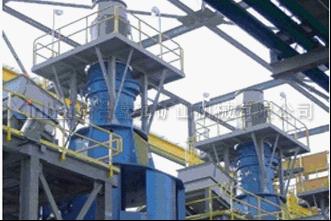

Vertical Mill

We are offering vertical mill etc.introduction
the vertical mill that developed by our company is featured by high energy saving, low cost and long service life. In the vertical mill the spindle axis is vertically oriented. Milling cutters are held in the spindle and rotate on its axis. The spindle can generally be extended, allowing plunge cuts and drilling.
Features
vertical structure makes the machine occupying small area.
the product size is adjustable on required in the range of 100-425 meshes.
Compared with other grinding mill, its passing ratio achieves 99%, this is what other mill can not reach.
Application
this machine is mainly used for the materials with particle size less than 6mm.
Working principle
technical parameter
model  srm25.2 srm31.3 srm36.4 srm38.4 srm45.4 srm53.4
diameter of rolling
disc mm φ2500 φ3100 φ3600 φ3800 φ4500 φ5300
roller number 2 3 4 4 4 4
roller diameter mm φ1850 φ1650 φ1850 φ2000 φ2150 φ2450
rolling disc rpm
rmin 36.7 33.5 30.6 29.8 27.3 24.5
discharge air  volume
m3h 160000 250000 330000 380000 520000 710000
capacity th 30 40 75 82.595 120 150160
power kw 800 1120 2000 22402500 3150
