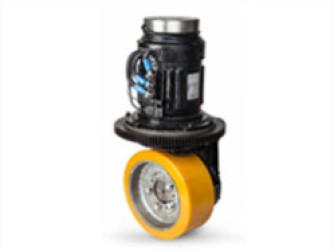

Automatic Polished Cast Iron Vertical Motor Wheel

Automatic GradeAutomatic
MaterialCast Iron
FinishingPolished
CertificationCE Certified
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginChina
Number Of FlowerAC
Brand NamePLUTOOLS
PhaseDouble Phase
MaterialCast Iron
Packaging TypeSliver
Total Carbohydrate1 Year
FinishingPolished
Automatic GradeAutomatic
CertificationCE Certified
Number of Poles2 Pole
SpecialityRobust Construction,Easy To Use,High Efficiency,Reliable
UsageIndustrial

Power: 80w up to 30kw
voltage:12-96v
dc, ac, pmac
-the drive wheel is designed for internal use on battery-operated vehicles ( fork lift trucks, self –propelled vehicles, agv’s guided or guide wire)
-the drive gear is lubricated with grease, using grinded gear to minimize noise.
-produced with low noise gear box, minimal envelope radius, and compact design
-the motor can be d.c. Or a.c. on request we can supply shaft extension for encoder application and special plates

About PLT-230P1500M-24VS

Rated Power(W) 1500
Battery voltage(V) 24
Traction motor rated speed(RPM) 3200
Frequency(Hz) 110.7
Traction rated current(A) 76.2
Traction motor torque(Nm) 4.5
Traction gear ratio 30
Nominal wheel torque(Nm) 108
wheel diameter(mm) 230
Max. accel and braking torque(Nm) 306
max.load(kg) 1500
Brake Torque(Nm) 16
max.speed(m/s) 1.28
Steering Power(W) 400
Steering rated current(A) 12
Steering gear ratio 33.92
Steering motor torque(Nm) 1.27
Steering gear output torque(Nm)34.4
Steering motor ratespeed(RPM) 3000
