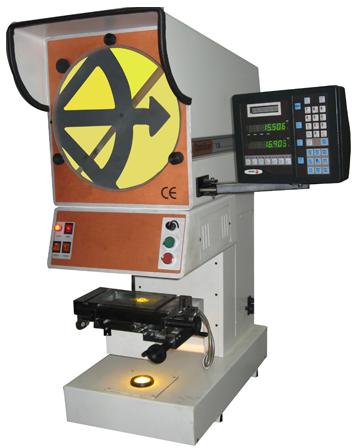

Vertical Profile Projectors

Vertical Light Path Profile Projectors essentially have the light travelling vertical (upward or downward) starting from from the source to hit the job on the work-stage and then through the objective too the screen. This is ideal for measuring a wide range of  profiles with flat bases directly and further irregular jobs using fixtures.Slant screen projectors are also available in this design. A few examples for suitable jobs are bearings, rings, automotive oil seals, gear wheels etc.
