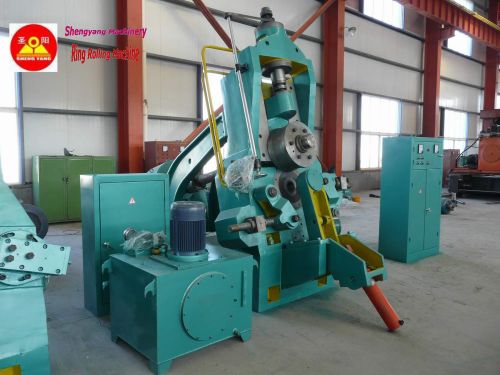

Contact Supplierd51-350b vertical type ring rolling machine
1. usage: produce seamless and ringlike rings by hot forging technology
2. blank material: carbon steel, alloy steel, stainless steel, alloy steel, aluminum and copper and so on, as 45# steel, q235, 40cr, 38crsi and so on.
3. application: bearing, flanges, gear rings, wheel hub, crown wheel and so on.
4. advantage: small volume, compact structure, save material and power, high quality and good price and so on.
5. marketing: eastern asia, south asia, southeast asia, western europe, eastern europe, northern europe, southern europe, north america, south america, mid east
6. delivery time: 30 days about after advance payment
7. packing: container, steel-plywood cases
8. certificate: ce certificate
iso9001:2008
9. technical parameters
no. item parameter unit
1 outside diameter of ring 180-350 mm
2 maximum rolling force 300 kn
3 rolling speed 1.5 ms
4 main roller diameter 680 mm
5 min center distance between main roller and mandrel 345 mm
6 maximum ring thickness 160 mm
7 oil cylinder stroke 110 mm
8 max diameter of mandrel sleeve 90 mm
9 main motor power 90 kw
10 overall dimension 4200×2000×2910 l×w×h(mm)
