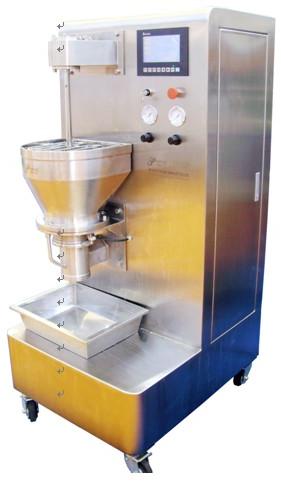

Vertical Rotationg Extruder

we are offering vertical rotationg extruder.
introduction
well distributed loose or dumpliong mixture soft materials , such as powder materials , excipients and moist adhesives , are conveyed into the extrusion bin via the aperture , thus compact and irregular cylindrical extrudates are formed .
features
1.continuous work , high efficiency .
2.uniform extrudates , good density , and high rate finished products .
3.compared with screw extruder , extrudates from vertical rotating extruder generates little heat , quick and afebrile extrusion for thermo-sensitive substances is possible which superiors to screw extruder for it needs no cooling without orofoce imploding . (with high use-cost and hard installation , orifice of twin screw extruder is apt to implode. )
4.high security , self-protection .
5.easy cleaning , maintenance and operation .
6.multi-aperture mesh board makes it possible to extrude out 0.5mm~3.0mm cylindrical extrudates .



lxj-40 lxj-80 lxj-120 lxj-150 lxj-200 lxj-300 lxj-400
最小投料量
（minimum feeding capacity) kg 0.15 0.3 0.5 0.5 1 2 2
产量(output)
（以φ0.8为例） kgh ≤50 ≤80 ≤120 ≤150 ≤260 ≤360 ≤500
孔径（aperture) mm φ0.4～3.0 φ0.5～3.0 φ0.5～3.0 φ0.5～3.0 φ0.5～3.0 φ0.6～3.0 φ0.6～3.0
电源(power) vhz 38050
转速
(rotating speed) rmin 5～95
物料收率
(material yield) % ≥99%
噪音(noise) db ＜45 ＜45 ＜45 ＜60 ＜60 ＜60 ＜60
外形尺寸
(dimension l*w*h) mm 860×700×1600 950×800×1600 1350×1000×1620 1350×1100×1620 1500×1100×1650 1650×1150×1650 1650×1200×1650
重量(net weight) kg 380 600 800 1000 1200 1500 1800.
