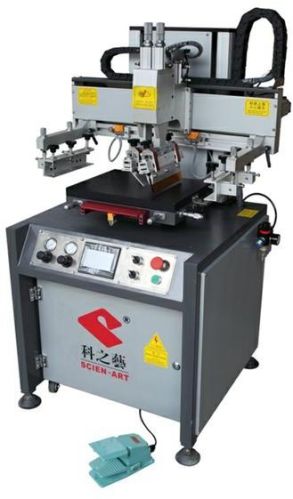

Vertical Screen Printing Machine, Brand Name : scien-art

We are offering vertical screen printing machine, 1. Application scope:
◆mobile phone cover 、mobile phone back 、the tablet pc cover plate
2. Characteristics:
◆printing driving force supply by imported servo motor, more smoothly
◆many parts can be free choosed by the customer , choosing is more flexible
◆bedplate of hard anodized aluminum, more effectively prevent glass from scratching
◆touch screen control, various details of fine-tuning to precision control
3. Technical parameters：
model ykp-2030ab ykp-3045ab
workbench area (mm²) 300×400 400×550
max print area (mm²) 200×300 300×450
max screen size（mm） 450×620 550×720
accuracy(mm) ±0.05 ±0.05
thickness of printing stock（mm） ≦40 ≦40
printing speed (pcsh) 960 900
printing pressure(kgfcm²) 4.0～6.0 4.0～6.0
rated power (v) 380 380
source power (kw) 1.5 1.5
dimension (mm) l×w×h 830×720×1580 980×820×1580
weight (kg)
we can manufacture according to customer’s requirements
