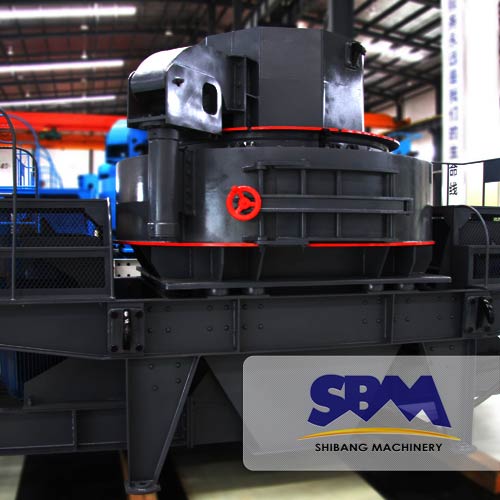

Vertical Shaft Impact Crusher, Brand Name : SBM

Get Latest Price

MOQ1 Set(s)
Brand NameSBM
Installation mode selection—handy installation, diversified modes, easy to operateCrushing principle selection—impact grinding with superior particle shape
Reliable dual pump oil supply lubrication system—stable performance, long lifeHydraulic pressure jack device—convenient, timesaving and laborsaving for maintenance
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shanghai Shibang Machinery Co. Ltd.

China

View Number

Member Since 16 Years
Nature of Business Supplier
Year of Establishment 1988

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering vertical shaft impact crusher. We are offering vertical shaft impact crusher. Application pcl-vertical shaft impact crusher is applied widely for the powder process of mineral product including mental and non-metal ore, fireproof material, bauxite, diamond dust, glass raw materials, architectural materials, artificial sand and all kinds of metal ore materials, especially which has more advantages than any other machines in processing the more and most hard materials.

features and benefits

simple structure

low cost high efficiency

low consumption primary

second crushing capacity more and most hard materials can be crushed cubic shaped final product little noise and dust pollution convenient performance, maintenance, installation

working principle the whole pcl vertical shaft impact crusher includes feed hopper, classifier, whirl pool cavity, impeller, main bearing assembly base, transmission device and motor etc. Operating principle is as follows:

the materials enter the crusher through feeder hopper, which is divided into two parts, one part through the middle of classifier entering into the rotating impeller at high speed, then accelerated, whose speed can reach hundreds of acceleration, then is shot through the tunnels around the impeller by the speed of 60-75 metersecond. First the materials will impact with some materials fallen around classifier, then impact on the whirlpool cavityã�â¢ã¯â¿â½ã¯â¿â½s scaleboard together, then will be rebounded and impact on the top of the whirlpool cavity, then changes its direction and goes down, forms continual material layers with the materials shot from the impeller. Therefore some materials will be impacted, crusher, milled twice or more times in the whirlpool cavity, then crushed materials will be excluded through the bottom discharging hole. This can from a closed circulation through the circular classifier system; in general, materials can be crushed into 20 mesh through thrice circulation. Airflow self-circulation in the whirlpool cavity can eliminate the dust pollution well.

you can contact us by this ways;
mr. Songke yang telephone : 0086-21-58386176 fax no : 0086-21-58386211 mobile phone : 2158386189 url: http.

Specification

Model	Max. feeding (mm)	Power(Kw)	Impeller speed (r/min)	Capacity (t/h)	Outer dimension :LÃ??WÃ??H (mm)	Weight(T)
PCL-600	26	2x30	2000/2600	8-50	3300x1500x2050	5.4
PCL-750	35	2x45	1500/2500	25-55	3300x1800x2440	7.3
PCL-900	30	2x(55-75)	1300/1700	55-120	3600x2140x2620	12.1
PCL-900B	40	2x(75-110)	1000/1450	60-150	3600x2140x2620	13.6
PCL-1050	40	2x(90-110)	1000/1700	100-160	4480x2450x3906	16.9
PCL-1250	40	2x132	950/1200	100-200	4520x2640x3100	22
PCL-1350	60	2x220	800/1200	160-360	5300x2900x3200	26
