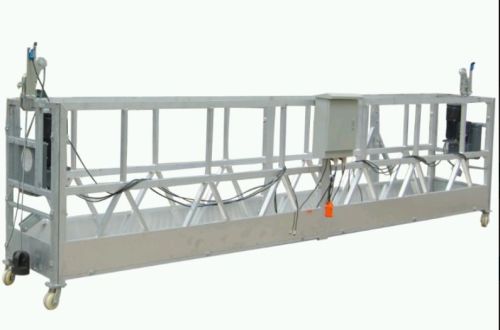

Metal SRP80 Suspended Rope Platform

SRP 80, Spantech’s Safe Alternative to Scaffolding
Features :

• Electro-Magnetic Brake Motor - The electromagnetic brake of hoist motor is able to be auto-engaged to produce braking torque 15.2 N m that stops & supports the suspended platform, in the event of power failure or emergency.
• SS F80 Tilting Roof Type - Safety lock is a separate mechanical unit that automatically locks safety wire rope when the working wire rope breaks or suspended platform tilts to its limits. The safety rope clip swiftly closes & locks safety wire rope preventing the platform from dropping or tilting by the friction.
• Emergency Braking Overload - In any abnormal situation, emergency braking can be executed to ensure safety. It presses the emergency brake switch on the panel of electric control box, thereby switching off the power, thus stopping the hoist. Also, the thermal relay cuts off the power automatically in case of the motor overloading.
• Centrifugal Speed Limiter - Centrifugal Speed Limiter is a safety device which restricts one platform to go beyond the specified/ rated speed & also avoids free fall.
• Pin Type Fixtures - Pin type fixtures are used instead of conventional nut & bolt fittings. This makes the assembly & disassembly easy & fast. It doesn’t require support or any tools which reduces labour efforts & time.
• Upper Limit Switch - Upper limit switch is set on the upper working area of the suspended platform. When the travel switch actuates the limit, the motors will stop operation.
