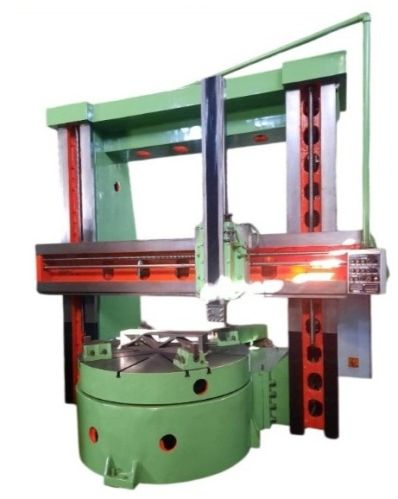

We are looked upon as one of the prime Lathe Machinery Exporters from India. The Vertical Turning Lathe Machine (Vertical Turning Cum Boring Machine), offered by us, is widely demanded in the market as no alternative is available in terms of quality and performance. Additionally, customers are eased with the availability of the CNC Vertical Turning Lathe Machine loaded with all the advanced features.
Note : Dimensions, Design, Weight, & Specifications Can Be Change as Market Demands or Further Improvement of Machine Without Notice.
| Models | Single Column | Double Column | |||||
|---|---|---|---|---|---|---|---|
| 600 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | |
| Table Diameter | 600 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 |
| Maximum Turning Diameter | 650 | 1050 | 1300 | 1600 | 2200 | 2700 | 3200 |
| Maximum Distance From Table | 400 | 600 | 800 | 1400 | 1400 | 1500 | 1600 |
| Travel of Turret Head Center Towards Right from Table Center | 400 | 550 | 650 | 850 | 1150 | 1450 | 1650 |
| Vertical Travel of RAM Head | 400 | 500 | 650 | 750 | 1000 | 1100 | 1200 |
| No. of Table Speeds | 4 | 9 | 9 | 6 | 6 | 6 | 6 |
| No. of Feeds per Revolution | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| H.P Main Motor Drive | 3 HP | 5 HP | 7.5 HP | 20 HP | 25 HP | 30 HP | 35 HP |
Note : Dimensions, Designs, Rates & Specifications Can Be Changed as Market Demands or Further Improvement of Machine Without Notice.
