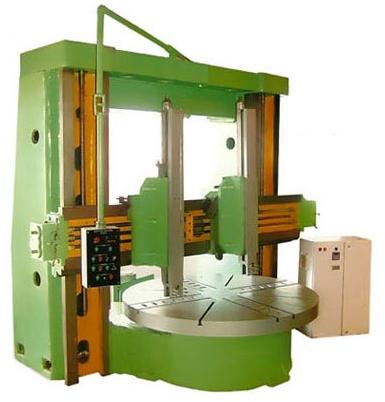

Vertical Turning Lathe Machine

Sold By : Leader Machine Toools

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

The company has emerged as a well-known Vertical Turning Lathe Machine, Industrial Vertical Turning Lathe Machines Manufacturer, Supplier and Exporter. Vertical Turning Lathe Machines, offered by us, are using precision engineering skills of our worker. Vertical Turning Lathe Machine helps in making symmetry of a work piece. We offer these Vertical Turning Lathe Machines in varied grades and specifications. Besides, Vertical Turning Lathe Machine can also be customized as per the demand of the clients. We offer standard accessories such as Jaw Chuck, Tool Kit, Lubrication System on all Sliding Ways and many more. Clients are free to place the bulk orders of these Vertical Turning Lathe Machines and can avail them at the market leading prices

Technical Specification

Model No	LMT-VL1	LMT-VL1.2	LMT-VL1.5	LMT-VL2	LMT-VL2.5	LMT-LT3	LMT-VL4	LMT-VL5	LMT-VL6
Max. Turning Diameter	1000	1200	1500	2000	2500	3000	4000	5000	6000
Side Head Below the Table Top	1260	1600	1750	2250	2750	3500	4500	5500	6500
Max. Turning Dia. with Side Head in Work Position	1100	1500	1700	2500	2800	3500	4500	5500	6500
Max. Working Height Under Cross Rail	1000	1200	1200	1700	1700	2200	2200	2500	2500
Vertical Travel of Ram Head	500	600	600	700	800	900	1000	1000	1000
Swivel Angle of Ram Head	45	45	45	45	45	45	45	45	45
Horizontal Travel of Side Head	600	600	600	700	800	900	1000	1000	1000
Max. Vertical Travel of Side Head	1000	1000	950	1250	1250	1750	1750	2000	2000
Table Speeds [R.P.M]	10-100	9-90	8.5-85	5-50	2-20	1.5-15	1.5-15	1-10	1-10
Feeds, Horizontal & Vertical	6	6	6	6	6	6	6	6	6
Range [MM / min]	0.3-2.3	0.3-2.3	0.3-2.3	1-6.5	1-6.5	1-6.5	1-6.5	1-6.5	1-6.5
Main Motor [H.P]	15	15	20	25	30	40	40	50	60
Weight Approx .[KG]	12000	13500	15000	21000	25000	35000	45000	55000	70000
