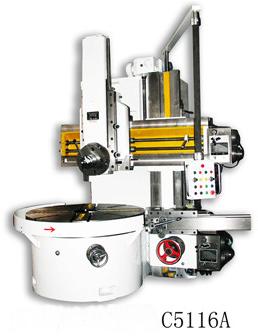

Vertical Turning Lathe Machine

₹ 91 Lakh / 300000 300000 Set

MOQ1 Set(s)
Condition: NewType: Vertical
CNC or Not: CNCPlace of Origin: Liaoning China (Mainland)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We offer vertical turning lathe. term unit semi-closed cnc single column vertical lath ck5112e ck51165e max. Turning diameter mm 1250 1600 worktable diameter mm 1000 1400 max. Height of work....

Product Details

We offer vertical turning lathe.
term unit semi-closed cnc single column vertical lath
ck5112e
ck51165e
max. Turning diameter
mm 1250 1600
worktable diameter
mm 1000 1400
max. Height of work piece
mm 10001200 12001400
rotating range of worktable
rmin 0.5â��250 0.5----200
stage number of mechanical variable speed(æ�ºæ¢°å��é��çº§æ�°) four gear + stepless four gear + stepless
max. Cutting force of vertical tool post
n 250000 250000
max. Torque of worktable
n 250000 250000
horizontal travel of vertical tool post
mm 850 1020
vertical travel of vertical post tool
mm 700 800
tool station carrier form
4 station carrier 4 station carrier
crossbeam travel
mm 650850 8501050
tool post fast moving speed
mmmin 6000 6000
crossbeam lifting speed mmmin 440 440
sectional dimension of tool bar(l*w)
mm 32*32 32*32
main electric motor power
kw 3037 4555
water pump power
kw 0.55 0.55
chip conveyor power
kw 0.37 0.37
cooling refrigerator power
kw 1.5 1.5
positioning accuracy
mm 0.03 0.03
repeatability positioning accuracy
mm 0.015 0.015
machining accuracy
it7 it7
overall size (l*w*h)
mm 4860*2877*3403 5260*3060*3690
weight(about)
ton 9 13.2

Additional Information

Payment Terms L/C, D/A, T/TWestern Union
Port of DispatchDalian(China)
Packaging DetailsPlastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box. Delivery Detail: 3~4 months after received advance
Delivery Time30-90 days
