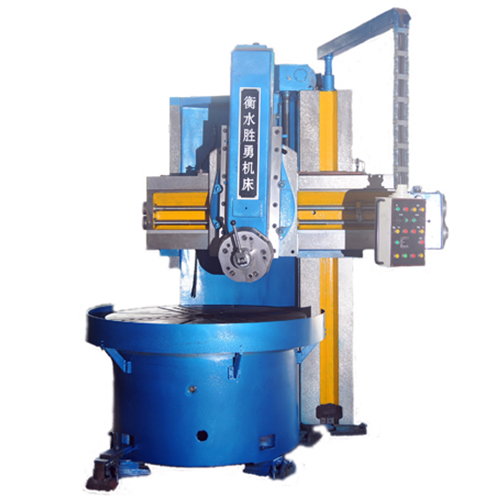

Vertical Turning Lathe Machines C5118

Product name:Vertical turning lathe machines C5118
Application fields of Vertical turning lathe VTL machine:
Vertical turning lathe VTL machine is used for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving.
Vertical turning lathe VTL machine model:
C5112C5116C5118C5120C5123C5125C5126
C5225C5232C5240C5250C5263 C5235
Technical specification of Vertical turning lathe machines C5118
1 Table diameter 1400 mm
2 Maximum turning diameter 1800 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mmmin
8 Step 12 step
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 2900×2900×3800 mm
