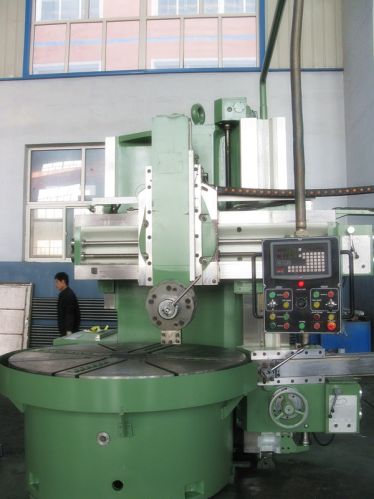

Vertical Turret Lathe, Brand Name : Dalian Feida

We are offering cx5120 vertical turret lathe.
Main technical specification
no. name value
1. Max. Turning diameter (mm) 2000
2. Table diameter(mm) 1800
3. Max. Working height of workpiece(mm) 1200
4. Max. Weight of workpiece (t) 8
5. Speed range of table(r/min) 3.5~110
6. Speed-step of table 16
7. Feed range of railhead & side head (mm/min) 0.8~86
8. Max. Cutting resistance of railhead(kn) 25
9. Max. Cutting resistance of side head (kn) 20
10. Max. Torque(kn•m) 32
11. Travel of railhead (mm)
horizontal 1050(mm)
vertical 800(turret)/1000(ram)
12. Travel of side head (mm)
horizontal 630
vertical 1150
13. Travel of crossbeam(mm) 890/1050
14. Moving degrees limit of railhead(°) ±30
15. Rapid travel speed of railhead &side head (m/min)1.8
16. Moving speed of crossbeam(m/min) 0.44
17. Sectional size of tool bar(w×h)(mm) 30×40
18. Power of main motor(kw) 30
19. Overall dimensions (l×w×h)(mm)3100×2800×3010
20. Weight of machine(about t) 15
