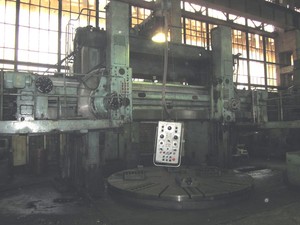

Contact SupplierWe would like to offer for you the Vertical Turret Lathe model 1540 KOLOMNA\r I send you the photo\'s of VTL model 1540 KOLOMNA .\r The machine is in very nice working condition.\r Also,you can see this machine under power on next link:\r http://youtu.be/2NTLxDY6K3o\r YOM is 1971\r Diameter of workpiece: 4000 mm\r Height of workpiece: 2000 mm\r Diameter of a faceplate: 4000 mm\r Max. slider stroke : 1250 mm\r Right slider type: turning\r Left slide rtype: combinated\r Corner of supports turn: -15 +40\r Weight of the workpiece on a faceplate: 50000 kg\r Effort of cutting to a right support: 63 kH\r Effort of cutting to the left support: 50 kH\r The max total effort of cutting by two supports: 100 kH\r Table speeds: 0.52 - 48.7 rpm\r Feeding: 0,059 - 470 mm/min\r Rapid feeding: 2715 mm/min\r Capacity of the main drive: 63 kW\r Height above a level of a floor: 6000 mm\r Dimensions (lenght-width-height): 5900 x 10100 x 7200 mm\r Machine weight: 100 ton\r The price FOB St.-Petersburg port, Russia is 105 000 Eur.\r The best regards\r Radik\r STANKOEXPORTSERVICE , Ltd.\r Russia, Ivanovo, 153032,Svobodnay street, 2\r Tel./fax +7 4932 242320\r Cell +7 915 81 11 460\r mailto: \rstanki.plus@mail.ru \rradik.maksutov@yahoo.com\rhttp://stanko-export-service.com/
