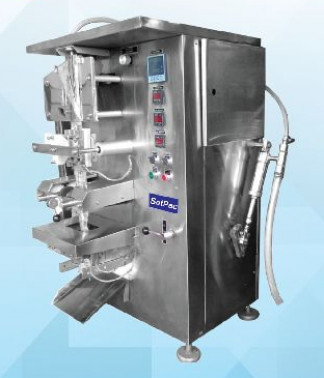

Setpac VFD For Norma Speed SS Oil Packaging Machine, Power : 3 K.W / Hour

We are offering oil packaging machine.
1 product to pack edible oil ghee vanaspathi
2 type of machine fully automatic normal speed single head mechanically controlled
through plc, ffs
3 model setpac
4 feeding systems volumetric filler
5 packaging range 2505001000 ml
6 accuracy in volume +- 0.5% of the quantity packed
7 accuracy in length +- 2mm
8 speed of the machine 20 pouchesminhead for 500ml pouch
(250ml - 20 ; 500 ml - 20 ; 1000ml - 18)
9 packing material ld bondingnylon bonding prime core
10 film thickness 90 to 110 microns
11 film width 324+-2mm
12 film roll weight 15 to 22 kgs
13 type of seal vertical overlap horizontal --impulse heat seal
14 material of construction s.s-304 gr en14.3 m.s aluminum
15 injection system as per customer�s requirement (electromagnetic or pneumatic)
16 movement operation eccentric cam operated- with double movement
17 product feed system positive displacement pump with motor
18 electric and instrumentation � plc control
� vfd
� step down transformer ac
� all cables : finolex make
19 cooling water requirement 120 ltrs hour @ 5 to 8 â°c (client scope)
20 power consumption 3 phase with 50 hz regulated voltage (client scope)
*** current fluctuation should be avoided
21 power consumption 3 k.w hour
22 machine weight 450 kgs approx.
23 machine dimensions (l x b x h) 1.2 x 0.9 x 2.1 mtrs
24 photo sensor included with machine
25 date coding unit setpac make (friction coder)
26 pouch counter alarm built in plc
27 sealing attachment(front&back) s.s-304gr en14.3
