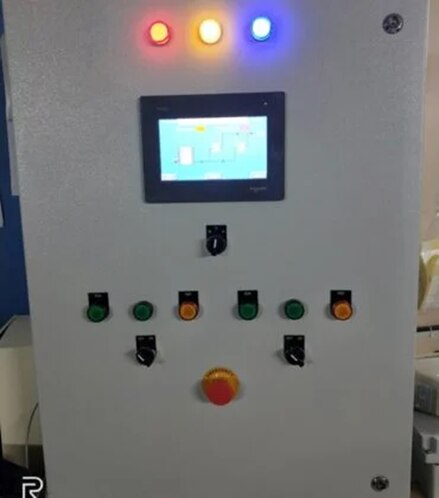

Metal VFD HYPN System, Shape : Rectangle

This is HYDRO PNEUMATIC PUMPING system. In this system there are two working pumps and one standby pump. 1 pump will work on VFD and 2nd pump will work on DOL (Direct ON Line).Standby pump also work on DOL. vfd hypn system works on two pumps only, Incase of healthiness in the system like pressure increasing or decreasing or speed of the pump increasing or decreasing then pump will changeover to 3rd pump which is an standby pump. We have assigned priorities to the pumps as per conditions, if any one of the pumps priority is 1 then it will work on VFD and if priority is 2 or 3 for next 2 pumps it will work on DOL. Pumps priority will change as per the condition like VFD Trip, Pressure increases & decreases. Because of the use of variable frequency drive (VFD) the pump motors does not operates on the constant speed, the pump operates by varying its speed depending on the pressure requirements. The panel operates according to hydro pneumatic principle but as per water demand pump changes its speed via variable frequency drive (VFD). Pumps speed changes by changing the frequency (Hz) to pump. Pump voltage remains the same. If pump speed reduces 20% power saving up to 50%. Every start and stop of pump also saves pick power.

Given that the term “VFD HYPN system” seems to be specific or not widely recognized, I’ll base the benefits on the assumption that it refers to a system combining a Variable Frequency Drive (VFD) with a component or technology represented by “HYPN.” This could imply a system that integrates VFDs with advanced control, automation, or possibly hybrid technology.
