Vial Inspection Machine, Ampoule Inspection Machine, Brand Name : CVC

We are offering vial inspection machine, ampoule inspection machine.

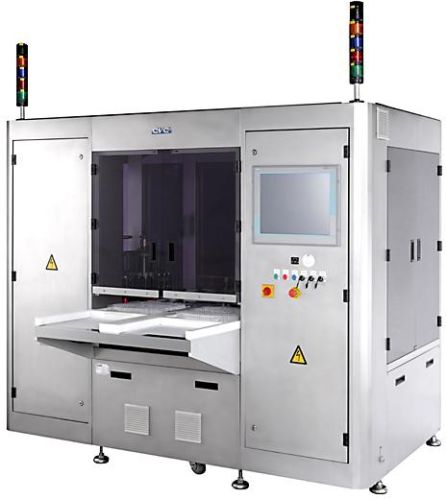

cvc ai30 vial/ampoule inspection system:
cvc ai30 is designed to ultimately guard the quality of injectable solutions; positioned right after the filling system, to detect visible deficiencies that appear during the production. It is applicable to inspections of particles, filling level, cosmetic defects, and foreign matters inside containers.
photo a. Tvs are positioned around the turret mechanism and perform image-scanning of each container passed by.
photo b. The configuration of cvc vision inspection system.
cvc ai30 is equipped with three cameras as the standard configuration, two for foreign particulates and one for filling level (or alucap sealing); an optional camera could be added for ampoule tip shape.
the advantages
1. The maximum capacity can reach 18,000bpm 2ml ampoule.
2. Excellent performance and quality with most affordable price.
3. Innovative design from italy and made in taiwan.
4. Complies with fda 21cfr part11.
5. A professional r&d team composed of experts from the biotechnology, computer image and pharmaceutical packaging equipment to develop a set of the best detection technology which is based on years of practical application from clients.
6. Plc controlled.
7. The terminal is provided as the machines hmi (human machine interface) and ipc.
8. Emergency pushbutton and safety devices are standard items for security guardian.
9. Simple design for easy cleaning and maintenance.
10. Simple parameters setup features quick machine setup and changeover.
11. Simplified product format enables tool-less changeover.
12. Compatible both in-feed and out-feed by customers� trays or in-line integration.
specifications:
inspected items: ampoules and vials with visible deficiencies
container size: 10 mm ~ 32 mm
maximum container height: 130mm
machine capacity: 18,000 pcs/hr 2ml ampoule
minimum detectable dimension: 20 - 40 micron
acoustic noise: 75 db
power supply: 400 v, 50 ~ 60 hz, 3ph+n+pe
power consumption: 3 kw
dimension (l x w x h): 2800 x 2360 x 2480 mm
weight: 1500 kg
