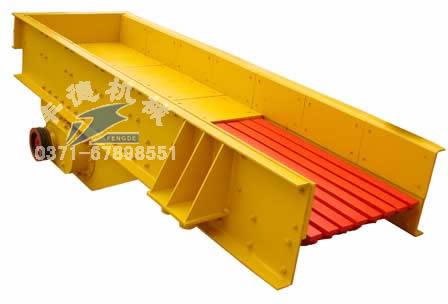

Vibrating Feeder Machine, Vibrator Feeder, Feeding Machine, Mineral Machinery, Sand Making Machine

We are offering vibrating feeder machine, vibrator feeder, feeding machine, mineral machinery, sand making machine.
during processing, the equipment can send various materials into the crusher uniformly, regularly, continuously, also separate the raw materials primarily. It is metallurgy, coal ore, construction materials, etc.
features:
1. Large capacity and low operating cost
2. Excellent motor
3. Widely used
4. Easy to install and operate
5. Save power
6. High efficiency
7. Reliable performance
8. Long service life and quality guaranteed
main technical parameters of vibrating feeder
model
hopper size
(mm*mm)
max. Feed size
(mm)
capacity
(t/h)
main shaft speed
(r/min)
power
(kw)
weight
(kg)
dimension
(mm*mm*mm)
gzd-750*250
750*250
300
30-80
1000
1.5*2
850
2200*1100*80
gzd-300*900
3000*900
500
40-100
1000
2.2*2
2350
3050*1430*1550
gzd-370*1000
3700*1000
700
100-150
1000
3.7*2
3016
3980*1878*866
zsw-380*96
3800*960
700
100-160
350-800
11
4825
3882*1684*1340
zsw-490*110
4900*1100
800
150-350
350-800
15
5980
4957*1841*1365
zsw-600*130
6000*1300
800
300-580
350-800
22
7820
6082*2580*2083.
