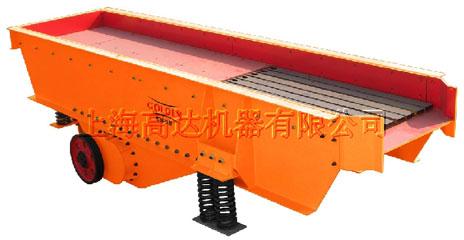

Vibrating Feeder, Finishing : Polished

We are offering vibrating feeder. Our vibrating feeders are divided into exciting vibrating feeder and linear vibrating feeder.the exciting vibrating feeder series is using two exciting motors,users can adjusted the feeder vibrating rate for require,so that control the feeding speed of the stone.during the production,vibrating feeder is used to evenly continuously send the pieces or power materials from hopper to receiving equipment.so that make production flow achieve automation to feed the belt conveyor,first crush and collection equipment.
applicability
widely used in metallurgy,coal mine,milling,building materials,chemicalindustry,ect.crush and collection combination plant.
Features and benefites
easy structure, feed evenly, good continuity,easy adjust,require adjust the feed,easy operation,low noises,low power consumption,stable and long service life.
Technical parameters
gzd-180×80 1800×800 300 30-80 yzo-20-6 1.5×2 2 0.8 2200×1100×800
gzd-220×120 2200×1200 300 80-220 yzo-30-6 2.2×2 2 1.59 2200×1200×855
gzd-300×90 3000×900 300 40-100 yzo-30-6 2.2×2 2 1.5 3050×1430×1550
gsw-380×96 3800×960 500 90-200 500-714 y180l-6 11 1 3.98 3882×2224×2121
gsw-420×110 4200×1100 580 150-350 500-800 y180l-6 15 1 5.0 4250×2500×1365
gsw-490×110 4900×1100 580 180-380 500-800 y180l-6 15 1 5.32 5100×2500×1365
gsw-490×130 4900x1300 720 200-300 500-800 y180l-6 22 1 5.9 4960x2580x1870
gsw-600×130 6000×1300 750 450-800 500-800 y180l-6 30 1 7.8 6150×2580×2083
