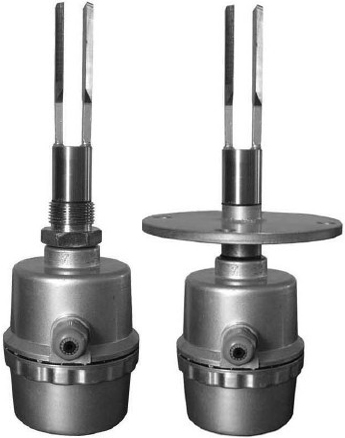

Vibrating Fork Level Switch

We are offering vibration fork level switch. Series ulyc is easy to use, with no calibration required and with no mechanical moving parts there is no routine maintenance required. The ulyc is unaffected by the dielectric constant of the sensed material, making it superior to a capacitance level switch for applications where the dielectric constant is too low, where there is more than one material being used in one vessel, and when material moisture content can change. The level switch is also good for applications when the bulk density is too low for a rotating paddle level switch. It can also detect granular material submerged in liquids of low viscosity, for example sand, gravel, or polyester chips in water.
technical data:
power supply:dc24v,ac220v
output mode:relay output(ac220v5a,dc28v10a)
working temperature:-40~150°c;
environment temperature:-20~70°c
process pressure:≤2mpa
material density:≥ 0.6gcm3
output delay: 0.3s,1s,3s,10s,30s(factory set 1s as standard,user can adjust depend on the needs)
power:1.5w
high and low alarm: the scene can be set up for the hlfs (high alarm way) or produce (low alarm way);
10, electrical interface: g12 "(female)
11connection:1" npt thread installation (standard and optional bspt);flange installation (optional);
12, protection: ip65;
13 explosion-proof grade: ex d ⅱ ct4;
