Vibrating Monitoring System, Power : 20mA, Display Type : Digital

Display TypeDigital
Power20mA
TypeSmart Vibration Monitor
BenefitsSingle Low-cost Unit, High-performance, Multiple Inputs/outputs, USB And Ethernet Connectivity
Supply TypeExporter, Supplier, Importer
Preferred Buyer Location All over the world

Company Information

4.5/5

(29)

Ask for more detail from the seller

Report incorrect details

TypeSmart Vibration Monitor
Display TypeDigital
Power20mA
BenefitsSingle Low-cost Unit, High-performance, Multiple Inputs/outputs, USB And Ethernet Connectivity
ConnectivityUSB Or Ethernet Connection
Measuring Ranges4 to 20mA
AdvantagesCost-effective, Easy Setup, 24/7 Monitoring
Power Supply24 VDC
Channels4 Channel & 8 Channel

Smart Vibration Monitor – 4 Channel & 8 Channel

Online/Fixed Vibration Monitoring

Features:

4 accelerometer channel & 8 accelerometer channel versions
24 VDC (relay drive) switched output for each channel (warning/critical, g or velocity)
4 to 20 mA output for each channel (g or velocity)
Temperature input
Tacho input
USB or Ethernet connection to Smart Vibration Monitor PC software and optional vibration analysis software

Advantages:

Extremely cost-effective – lowest cost per channel industrial vibration monitor/analyzer
Very easy to set up using Smart Vibration Monitor PC software
24/7 monitoring of critical plant operations

Benefits:

Single low-cost unit monitors plant with local alarms and connects to optional C-Trend II high-functionality PC analysis software

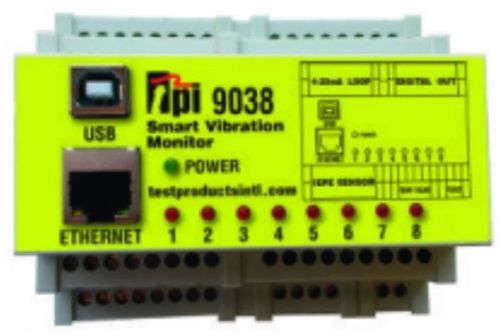

The Smart Vibration Monitor-04 and Smart Vibration Monitor-08 are the new generation of low-price, high-performance installed vibration analyzers from TPI
With up to 8 accelerometer inputs, 8 digital outputs, 8 analog outputs, temperature and tacho inputs, as well as USB and Ethernet connectivity, the Smart Vibration Monitor-04 and Smart Vibration Monitor-08 modules offer unrivalled price/per-channel performance
The analyzers can be used in several different ways
