Application

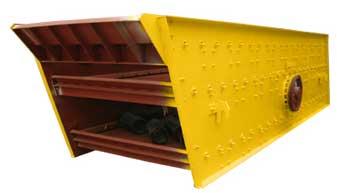

The Vibrating Screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad.
Vibrating Screen Equipment is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. We have carved a niche as one of the supreme Mineral Vibrating Screen Manufacturers and exporters.
Features And Benefits
The vibrating screen features long flowing line, many screening specifications, strong violent vibration force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.
Operating Principle
The vibrating screen adjusts the amplitude by tube-shaped violent vibration screen of eccentric shaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.
| Type | Screen Spec. mm | Layers | Sieve Pore mm | Max. Feed Size mm | Capacity t/h | Power KW | Vibrating Frequency HZ | Double Amplitude mm |
|---|---|---|---|---|---|---|---|---|
| YA1230 | 1200x3000 | 1 | 3-50 | 200 | 7.5-70 | 5.5 | 800-970 | 8 |
| 2YA1230 | 1200x3000 | 2 | 3-50 | 200 | 7.5-80 | 5.5 | 800-970 | 8 |
| 2YA1230 | 1200x3000 | 3 | 3-50 | 200 | 7.5-80 | 7.5 | 800-970 | 8 |
| YA1237 | 1200x3700 | 1 | 3-50 | 200 | 7.5-70 | 5.5 | 800-970 | 8 |
| 2YA1237 | 1200x3700 | 2 | 3-50 | 200 | 7.5-80 | 5.5 | 800-970 | 8 |
| 3YA1237 | 1200x3700 | 3 | 3-50 | 200 | 7.5-80 | 7.5 | 800-970 | 8 |
| 2YA1548 | 1500x4200 | 2 | 5-50 | 400 | 50-208 | 15 | 970 | 8 |
| 3YA1548 | 1500x4800 | 3 | 5-50 | 400 | 50-250 | 15 | 970 | 8 |
| 3YA1848 | 1800x4800 | 3 | 5-80 | 400 | 50-300 | 18.5 | 970 | 8 |
| 3YA1860 | 1800x6000 | 3 | 5-80 | 400 | 50-350 | 22 | 970 | 8 |
| 3YA2160 | 2100x6000 | 3 | 5-100 | 400 | 100-500 | 30 | 730 | 8 |
| 2YA2460 | 2400x6000 | 2 | 5-100 | 400 | 150-700 | 30 | 730 | 8 |
| Note : This specification is just for reference, any changes are subject to the products. | ||||||||
