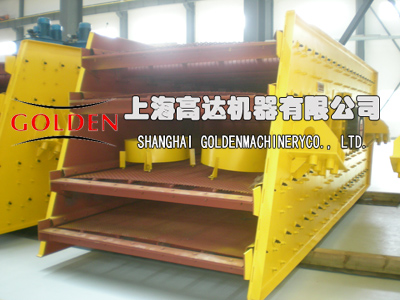

Vibrating screen, Frequency : 50 Hz

We are offering vibrating screen. The vibration screen is a kind of new many layers,efficient vibration screen,and it moves like a circle.it adjusts the amplitude by tube shape violent vibration screen of eccentric shaft and eccentric blocks,it has long flowing line,many screening specifications,is a special designed for grading and screening materialks in the fllowing fields:minerals,upgrade,building materialsand chemical industry smelting and so on.it has features fo reasonable structure,strong violent vibration force,high screening efficiency,small vibrating noises,firm and durable construction,convenlent, maintenance and safe operation.this series vibrating screen has features of adjusted strength,long flowing line,many layes screening classification,clearly every size screen,high screening efficiency.

features and benefites
1.ring connection,advance structure and wear well. 2.adopt tyre shaft coupling,flexible connection and running stable. 3.adopt high strength bolt between sieve beams and screen box,simple structure and easy maintenance. 4.advance structure,with the eccenttric piece as exciting force,strong exciting force,low power consumption and small noises. 5.adopt small amplitude,high frequency,big dip structure,high screening efficiency and big treatment capacity. 6.this vibration screen adopt big gap shaft,low noises,long service time and easy maintenance.
Technical parameters
2ya1237 2 3~50 1200x3700 200 15~160 970 5-9 7.5 2.34 4770x2050x1250
3ya1237 3 3~50 1200x3700 200 15~160 970 5-9 7.5 2.67 4770x2050x1550
2ya1548 2 3~80 1500x4800 200 50~250 970 5-9 15 5.33 5900x2270x1620
3ya1548 3 3~80 1500x4800 200 50~250 970 5-9 15 6.07 5900x2270x1670
2ya1848 2 3~80 1800x4800 400 50~300 970 5-9 18.5 6.23 5900x2560x1670
3ya1848 3 3~80 1800x4800 400 50~300 970 5-9 18.5 6.93 5900x2560x1820
2ya1854
