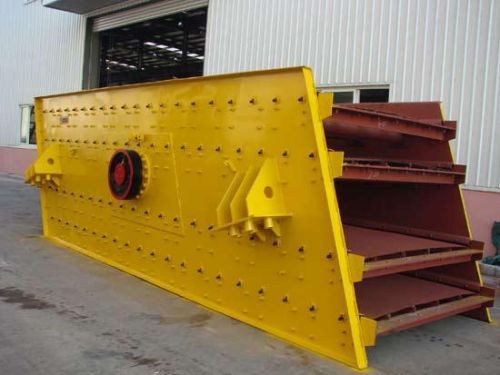

Vibrating screen for ore

The advantages of our Vibrating Screen
1. superior quality
2. reasonable price
3. one year gurantee
4. our engineer guiding for installation on site for free
5. our after-sale service team act immediatly on receiving your reports
6. providing high quality spare parts with low prices in order to appreciate your trust on our factory
Application of Vibrating Screen:
widely used in products classification in mining, building materials, transportation, energy, chemical industry, and is an ideal machine in crushing and screening joint equipment.
Main technical parameters of Vibrating Sceen: Model Screen deck Screen size
(mm) Max.feed size
(mm) Capacity
(t/h) Vibrating
frequency
(Hz) Electric motor
power
(kW) Weight
(t) Overall
Dimensions
(mm)
3YK-1245 3 1200×4500 200 15-80 16.2 11 4.807 5600×1800×1850
2YK-1548 2 1500×4800 200 30-180 13-16 15 5.800 1906×2100×1600
3YK-1548 3 1500×4800 200 30-200 13-16 15 6.866 5906×2100×1900
4YK-1548 4 1500×4800 200 30-250 1
3-16
18.5 7.360 5906×2100×2150
2YK-1854 2 1800×5400 250 50-300 16.2 18.5 6.769 6509×2536×1810
3YK-1854 3 1800×5400 250 50-300 16.2 22 8.285 6509×2536×1910
4YK-1854 4 1800×5400 250 50-300 16.2 30 9.796 6509×2536×2250
2YK-2160 2 2100×6000 250 100-400 16.2 30 9.680 7150×2670×2120
3YK-2160 3 2100×6000 250 100-400 16.2 30 10.206 7150×2670×2270
4YK-2160 4 2100×6000 250 100-400 16.2 30 11.800 7150×2670×2650
2YK-2460 2 2400×6000 300 150-600 16.2 30 10.200 7150×2900×2650
3YK-2460 3 2400×6000 300 150-600 16.2 30 12.350 7150×2900×2350
DF-1230 1 1200×3000 200 20-200 16.2 5.5 15.400 3500×1800×1100
DF-1548 1 1500×4800 250 50-450 16.2 15 3.750 5330×2000×1300
DF-1854 1 1800×5400 300 70-600 16.2 15 4.590 5630×2200×1320
DF-2160 1 2100×6000 300 120-750 16.2 15 5.423 6550×2600×1420
