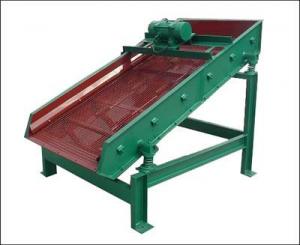

Contact SupplierVibrating Screen
Applications :
Vibrating Screen ,a new type high-efficiency screening equipment ,is used for the granularity between 0.074 to 5 mm, the humidity less than 70%.It can screen all kinds of nonviscous materials and the max feeding size is no longer than 10 mm.
Vibrating Screen is widely used in mining ,coal ,metallurgy ,fireproofing materials ,light industries and chemical industries etc.
Working Principles:
Vibrating Screen is driven by double vibration motor which moves oppositely .The eccentric block then produces rated exciting force .The transverse force then cancel out while the longitudinal force transfers on the screen face through the sensing body .Because of this ,the materials on the face jump in line .The materials whose granularity is less than the sieve fall down the bottom and run out of the discharging mouth .Classed by the liner vibrating screen ,then screened by the sieve ,different materials can be picked out .
Characteristics:
a. High efficiency screening ,large capacity of material processing
b. Low cost of manufacturer ,simple structure and low consumption .
c. Low noise ,long operation life .
d. fine tightness ,low excessive dust and easy maintenance .
Technical Parameters
Type Sieve size Sieve layer Mesh size Processing capacity Vibrating frequency Double amplitude Motor power Vibrating direction angle Dimension
(L*W*H)
(m³)
DZSF520
1
2
3
1
2
3
4
5
6 2-200 0.05-5 960 6-7 2*0.4 45-60 2140*808*848
2DZSF520 500*2000 0.05-5 960 6-7 2*0.4 45-60 2199*808*878
3DZSF520 500*2500 0.03-5 1450 4-6 2*0.4 45 2256*808*938
DZSF525 0.06-8 960 5-7 2*0.4 45-60 2642*808*848
2DZSF525 0.06-8 1450 4-6 2*0.4 45 2699*808*878
3DZSF525 0.06-8 960 6-8 2*0.75 45-60 2750*808*938
4DZSF525 0.1-15 1450 5-7 2*0.4 45 2813*808*1000
5DZSF525 0.08-15 1450 5-7 2*0.4 45 2883*808*1060
6DZSF525 0.07-15 960 6-8 2*0.75 45-60 2953*808*1120
DZSF1020 1000*2000 1 0.12-20 960 6-8 2*0.75 45-60 2152*1320*900
2DZSF1020 2 0.11-20 960 5-7 2*0.75 45-60 2219*1320*960
3DZSF1020 1000*2000 3 2-200 0.10-2 960 5-7 2*0.75 45-60 2286*1320*1030
4DZSF1020 4 0.07-15 960 4-8 2*0.75 45-60 2353*1320*1100
5DZSF1020 5 0.07-15 960 4-8 2*1.5 45-60 2420*1320*1160
6DZSF1020 6 0.07-15 960 4-8 2*1.5 45-60 2487*1320*1220
DZSF1025 1000*2500 1 0.1-15 1450 5-7 2*0.4 45 2203*1320*900
2DZSF1025 2 0.08-15 1450 5-7 2*0.4 45 2269*1320*960
3DZSF1025 3 0.07-15 960 6-8 2*0.75 45-60 2336*1320*1030
DZSF830
2DZSF830
3DZSF830 800*3000 1
2
3 0.1-20 960 6-8 2*0.75 45-60 3080*1098*1120
0.1-20 960 6-8 2*0.75 45-60 3140*1098*1180
0.1-20 960 6-8 2*1.5 45-60 3200*1098*1240
DZSF1030 1000*3000 1 0.1-20 960 6-8 2*0.75 45-60 3152*1340*1120
2DZSF1030 2 0.1-20 960 6-8 2*1.5 45-60 3219*1340*1120
3DZSF1030 3 0.1-20 960 6-8 2*1.5 45-60 3286*1340*1120
DZSF1224 1200*2400 1 0.1-23 960 6-8 2*0.75 45-60 2480*1520*1100
2DZSF1224 2 0.1-23 960 6-8 2*0.75 45-60 2540*1520*1160
3DZSF1224 3 0.1-23 960 6-8 2*1.5 45-60 2600*1520*1220
