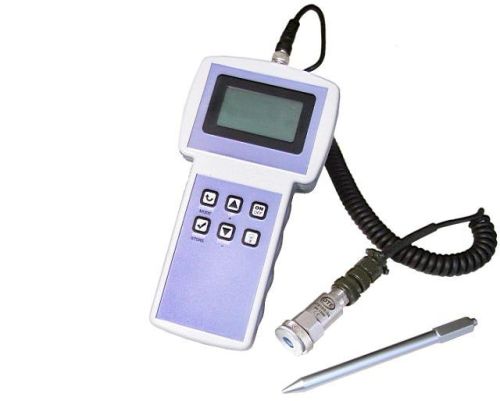

Vibration Meter, Brand Name : TEREN, Model Number : VM-6320

We are offering vibration meter.
feature:
1 designed to measure vibration of all kinds of mechanicaland, in order to quality control
2 choose high performance accelerometer,make measure to be more accurate and repeatability
3 also can measure bearing condition
specifications:
filter baud: d p
acceleration 10hz-1khz 0.1-200m/ms² 20.1-400m/ms²
10hz-10khz 0.3-200ft/ms² 0.3-1312ft/ms²
velocity 10hz-1khz 0.1-8.0inch/s 0.1-400mm/s
0.004-16.0inch
displacement 10hz-1khz 0.001-2.0mm 0.001-4.0mm
0.04-80mil 0.04-160 mil
accuracy: less 5 percent
auto power off
rpm(revolution):5-100000r/min
frequency:0.1 to 10khz
metric/imperial conversion
with rs232c interface
max hold
operating conditions:0-+45°c(32°f-104°f),≤90%rh
power supply:4x1.5v aaa(um-4)battery
battery indicator: low battery indicator
dimensions : 124x62x30mm
weight: 120g(not including battery)
application:
used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
is pecifically designed for present measuring various mechanical vibration. So as to provde the data for the quality control, run time and equipment upkeep.
iuse the high-performance acceleration meter, realize the repetitiveness and accurate measurement.
it has the function of testing axle bearing situation.
