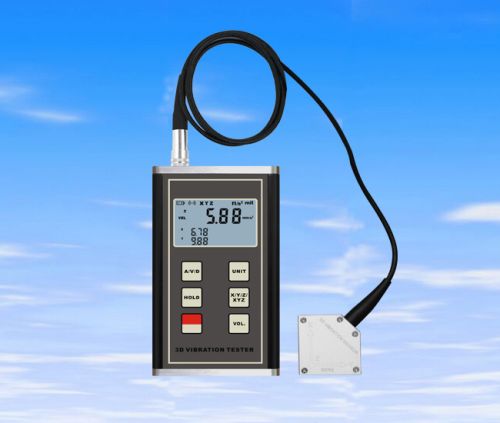

Contact SupplierWe are offering vibration meter,
vibration sensor:3-axis piezoelectric accelerometer
display: 4 digit lcd backlit
axial vibration: any one axis of x ,y,z or 3 axes of xyz
measurement range:
velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true rms
acceleration : 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
frequency range for measuring:10hz. To 10khz.
accuracy: 5% of reading + 2 digits
metric/ imperial conversion
analogue output: ac output 0~2.0v peak full scale
(load resistance: above 10k)
with max. Value hold and low battery indication
pc interface: rs232c or bluetooth interface
( cable and software is not included)
power supply: 2x1.5v aa size (um-3) batteries
power off : manual off at any time or auto power off is enabled by user
operating conditions:
temperature : 0-50 ℃
humidity : below 95% rh
dimensions: 124x62x30mm/4.9x2.4x1.2 inch
weight: 120g (not including batteries)
accessories included :
powerful rare earth magnet 1 pc.
accelerometer 1 pc.
stinger probe (cone) 1 pc.
stinger probe (ball) 1 pc.
carrying case 1 pc.
operation manual 1 pc.
Optional accessories: headphones for use as electronic stethoscope
cable and software for rs232c.
