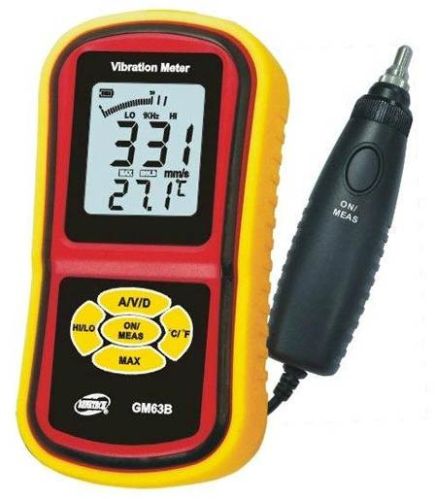

Vibration Meter

We are offering the highly advanced Vibration Meter. Vibration Meter is equipped two probes (S and L) to adapt the different measurement requirement. Vibration Meter provides a magnetic probe to fit the condition. Vibration Meter has compact and portable design. Further, our valued customers can avail Vibration Meter in different specifications as per their requirement.

Specifications

• Measurement range

  • Acceleration : 0.1~199.9m/s

  • Velocity : 0.1~1999.9m/s

  • Displacement : 0.001~1.999 mm (PP)

• Accuracy : ±5%

• Measuring frequency

  • Acceleration : 10Hz~1KHz (LO) 1KHz~15KHz (HI)

  • Velocity : 10Hz~1KHz (LO)

  • Displacement : 10Hz~1KHz (LO)

• LCD display : 3 1/2 digits display

• Vibration pickup : Piezoelectric ceramic accelerometer (Shear-type)

• Operation temperature :0~40^oC

• Equipped two probes (S and L) to adapt the different measurement requirement

• Provides a magnetic probe to fit the condition uneasy hold on by hand

• Maximum value hold function

• Ambient temperature reading

• C/F selection

• Low battery indication

• Auto power off

• LCD backlight display

• Warranty : 12months

• Packing method : Gift box + PP box

• Power supply : 1*9V battery

• Dimension : 70*145*28MM

• Net weight : 200g

Unit Price : 169.2 US $/Pc
