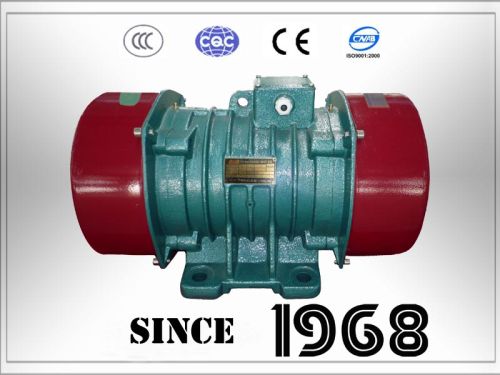

Vibration Motor

Vibration motor manufacturing, three phase asynchronous vibration motor. We are the largest manufacturing base of vibration motor in china, with janpan technology imported. The vibration motor is general vibration force source for various vibration machinery.
features:
1. Our vibration motor with full range of specifications, 0.1-25kw, 2.5-300kn.
2. Manufacturing with top quality material, long life, low noise, light and small.
3. High precision machine processing.
technical specification:
electric motor: three-phase asynchronous vibration motor
centrifugal force: extended up to 300 kn
power: 0.1kw-25kw
speed: 700rpm-3000rpm
polarity: 2, 4, 6 or 8 standard poles
voltage: three-phase voltage from 24v to 690v
frequency : 50hz or 60hz
insulation class: class b, class f, class h on request
protective category: ip 54, ip55, ip 65 on request
operating manner: continuous (s1)
ambient temperature: not exceed 40 centi degree
altitude: not over 1000 meters
connection:ydelta
installation direction: any direction
structure: enclosed, available under any dust circumstance.
Vibration force adjustment:available,to adjust steplessly by change angle of centrifugal weight.
application:
vibratory feeder, ore vibratory discharger, vibrating screen, vibrating conveyor, vibratory shakeout machine, vibratory sizer and stock-bin vibratory block-proof device.etc. it's widely used in coaling, mining, metallurgical, power generating, construction, chemical, light industry and foundry, etc.
