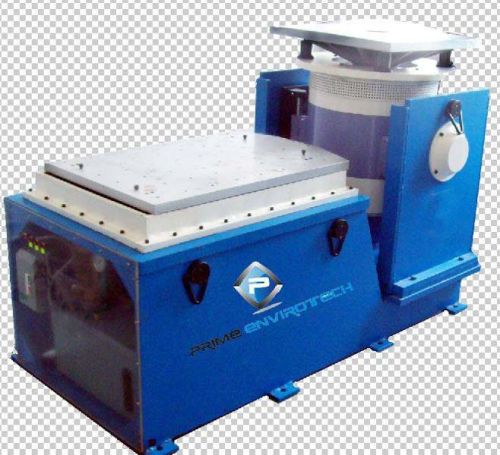

Vibration Testing System

Listing ID #1830845

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

We are one of the ambitious manufacturers, exporters and suppliers of the Vibration Testing System based in Roorkey, Uttarakhand. The systems that we offer are used to in various testing applications....

View More Details

Send Enquiry

Product Details

We are one of the ambitious manufacturers, exporters and suppliers of the Vibration Testing System based in Roorkey, Uttarakhand. The systems that we offer are used to in various testing applications in many industries such as automotive, defence, aerospace, nuclear and much more. The offered systems are compliant with all test standards such as MIL, IEC, ISO, BIS and more. They offer excellent stability and signal integrity. Please contact us for full information of software upgrades, add-on functions and hardware configuration of this system.

Details :

Prime Envirotech offer complete solutions for vibration testing and analysis. DSP centric hardware design for real time processing ensures true simulation of vibration patterns on vibrating platform when configured for close loop operation with an electrodynamic shaker system.
Supported with user friendly GUI and multi-channel smart instrumentation with minimized ground noise, these controllers are continuously modified and upgraded to meet the demand of advanced vibration testing applications in automotive, defence, aerospace, nuclear, seismic, railways, electronics, telecom, test laboratories, research and educational institutions.
Perceptive operation Excellent stability and signal integrity Precise accuracy in measurement & control Long term support and system longevity Independent of Host PC performance Compliance to all test standards like MIL, IEC, ISO, BIS, JIS, DIN, IS and more Software upgrades and add-on functions cExtensive reporting and Post-processing Automatic test sequencing Digital I/O for auxiliary control Graphical and tabular format of test data Transfer function & math calculations Combine Climatic & Vibration testing Hardware Configration Desktop module in metallic body Plug-n-play design Windows XP/7 compatibility Windows based GUI USB 2.0 connectivity 16/32 Bit high speed DSP board 4/8/16 channel input (simultaneous) 2 channel output (Servo & COLA) Charge/ ICP/Voltage/TEDS input support ±36V peak input (non-damaging) 16/24 Bit ADC & DAC Dynamic range >120 dB SNR >100dB (measured with DC to 1KHz Sine) Analog/ Digital/ Tracking Filter Channel cross talk

Vibration Test System 50-200 Kgf

Technical Specification	Model
Technical Specification	PE060	PE140	PE140
Sine Force KgF (lbf)	50 (110)	100 (220)	200 (440)
Random Force KgF (lbf)	35 (77)	70 (154)	140 (308)
Shock Force KgF (lbf)	-	200 (440)	400 (880)
Armature Diameter mm (in)	60 (2.4)	140 (5.5)	140 (5.5)
Peak Acceleration g (m/sec2)	45 (441)	50 (490)	60 (588)
Peak Velocity m/sec (in/sec)	1 (39.3)	1.4 (55)	1.4 (55)
Pk-Pk Displacement mm (in)	15 (0.6)	25.4 (1)	25.4 (1)
Armature Resonance Hz (±5%)	4500	3500	3500
Useful Frequency Range Hz	DC-5000	DC-4200	DC-4200
Max. Static Payload Capacity kg (lb)	5 (11)	20(44)	20 (44)
Trunnion Mounting	-	Provided	Provided
Power Amplifier Specifications	PEALK	PEA1K	PEA1K
Armature Power Supply	35V/ 20A	60V/25A	60V/25A
Field Power Supply	Built-in	Built-in	Built-in
Input Impedance	10 kΩ	Built-in	Built-in
Input Sensitivity	4 Vrms	4 Vrms	4 Vrms
Signal to Noise Ratio (SNR)	>80dB	>80dB	>80dB
Total Harmonic Distortion on resistive load	0.5%, typical	0.5%, typical	0.5%, typical
Sine Oscillator (1–5000 Hz)	Built-in	Built-in	Built-in
Modulation Range	DC-10 KHz	DC-10 KHz	DC-10 KHz
Coupling (to shaker)	Direct	Direct	Direct
Output Efficiency (%)	>90	>90	>90
Structure	Desktop, rack mounted	Modular, rack mounted	Modular, rack mounted
Safety Interlocks	Mains Over/under Voltage, Temperature PA, Temperature Shaker, Over Travel, Cooling Interlock, Phase Fail, Field Fail, Over Load, Auxiliary
Above specifications are standard specifications, subject to revision due to continuous improvement/ developmental activities without notice. However,
the specifications quoted by us in a proposal always supersede the printed/ published specifications.
Customized testing solutions and specifications are provided on demand.

Vibration Test System 400-1500 Kgf

Technical Specification	Model
Technical Specification	PE180	PE180	PE240
Sine Force KgF (lbf)	400 (880)	600 (1320)	1000 (2200)
Random Force KgF (lbf)	280 (616)	420 (924)	1000 (2200)
Shock Force KgF (lbf)	800 (1760)	1200 (2640)	2000 (4400)
Armature Diameter mm (in)	180 (7.1)	180 (7.1)	240 (9.5)
Peak Acceleration g (m/sec2)	50 (490)	75 (735)	75 (735)
Peak Velocity m/sec (in/sec)	1.6 (63)	1.6 (63)	1.7 (67)
Pk-Pk Displacement mm (in)	38 (1.5)	38 (1.5)	38 (1.5)
Armature Resonance Hz (±5%)	3250	3250	2750
Useful Frequency Range Hz	DC-3500	DC-3500	DC-3200
Max. Static Payload Capacity kg (lb)	150 (330)	150 (330)	250 (550)
Pneumatic Internal Load Support	Provided	Provided	Provided
Power Amplifier Specifications	PE4K	PE6K	PE10K
Armature Power Supply	60V/70A	80V/80A	85V/120A
Field Power Supply	Built-in	Built-in	Built-in
Input Impedance	10 kΩ	10 kΩ	10 kΩ
Input Sensitivity	4 Vrms	4 Vrms	4 Vrms
Signal to Noise Ratio (SNR)	>80dB	>80dB	>80dB
Total Harmonic Distortion on resistive load	0.5%, typical	0.5%, typical	0.5%, typical
Sine Oscillator (1–5000 Hz)	Built-in	Built-in	Built-in
Modulation Range	DC-10 KHz	DC-10 KHz	DC-10 KHz
Coupling (to shaker)	Direct	Direct	Direct
Output Efficiency (%)	>90	>90	>90
Structure	Desktop, rack mounted	Modular, rack mounted	Modular, rack mounted
Safety Interlocks	Mains Over/under Voltage, Temperature PA, Temperature Shaker, Over Travel, Cooling Interlock, Phase Fail, Field Fail, Over Load, Auxiliary
Above specifications are standard specifications, subject to revision due to continuous improvement/ developmental activities without notice. However,
the specifications quoted by us in a proposal always supersede the printed/ published specifications.
Customized testing solutions and specifications are provided on demand.

Vibration Test System 2000-3500

Technical Specification	Model
Technical Specification	PE300	PE300	PE360	PE360
Sine Force KgF (lbf)	2000 (4400)	2500 (5500)	3000 (6600)	3500 (7700)
Random Force KgF (lbf)	2000 (4400)	2500 (5500)	3000 (6600)	3500 (7700)
Shock Force KgF (lbf)	4000 (8800)	5000 (11000)	6000 (13200)	7000 (15400)
Armature Diameter mm (in)	300 (11.8)	300 (11.8)	360 (14.2)	360 (14.2)
Peak Acceleration g (m/sec2)	80 (784)	100(980)	80 (784)	100(980)
Peak Velocity m/sec (in/sec)	1.8 (71)	1.8 (71)	1.8 (71)	1.8 (71)
Pk-Pk Displacement mm (in)	51 (2)	51 (2)	51/63 (2/2.5)	51/63/76 (2/2.5/3)
Armature Resonance Hz (±5%)	2650	2650	2550	2550
Useful Frequency Range Hz	DC-3000	DC-3000	DC-2800	DC-2800
Max. Static Payload Capacity kg (lb)	320 (704)	320 (704)	360 (792)	360 (792)
Pneumatic Internal Load Support	Provided	Provided	Provided
Armature Auto Centering	Provided	Provided	Provided
Power Amplifier Specifications	PE24K	PE32K	PE40K	PE44K
Armature Power Supply	115V/ 210A	135V/240A	150V/270A	150V/295
Field Power Supply	Built-in	Built-in	Built-in	Built-in
Input Impedance	10 kΩ	10 kΩ	10 kΩ	10 kΩ
Input Sensitivity	4 Vrms	4 Vrms	4 Vrms	4 Vrms
Signal to Noise Ratio (SNR)	>80dB	>80dB	>80dB	>80dB
Total Harmonic Distortion on resistive load	0.5%, typical	0.5%, typical	0.5%, typical	0.5%, typical
Sine Oscillator (1–5000 Hz)	Built-in	Built-in	Built-in	Built-in
Modulation Range	DC-10 KHz	DC-10 KHz	DC-10 KHz	DC-10 KHz
Coupling (to shaker)	Direct	Direct	Direct	Direct
Output Efficiency (%)	>90	>90	>90	>90
Structure	Desktop, rack mounted	Modular, rack mounted	Modular, rack mounted	Modular, rack mounted
Safety Interlocks	Mains Over/under Voltage, Temperature PA, Temperature Shaker, Over Travel, Cooling Interlock, Phase Fail, Field Fail, Over Load, Auxiliary
Above specifications are standard specifications, subject to revision due to continuous improvement/ developmental activities without notice. However,
the specifications quoted by us in a proposal always supersede the printed/ published specifications.
Customized testing solutions and specifications are provided on demand.

Vibration Test System 4000-6000 Kgf

Technical Specification	Model
Technical Specification	PE440	PE440	PE440
Sine Force KgF (lbf)	4000 (8800)	5000 (11000)	50 lts to 8000 lts
Random Force KgF (lbf)	4000 (8800)	5000 (11000)	50 lts to 8000 lts
Shock Force KgF (lbf)	8000 (17600)	10000 (22000)	50 lts to 8000 lts
Armature Diameter mm (in)	440 (17.3)	440 (17.3)	50 lts to 8000 lts
Peak Acceleration g (m/sec2)	85 (833)	100 (980)	50 lts to 8000 lts
Peak Velocity m/sec (in/sec)	1.8 (71)	1.8 (71)	50 lts to 8000 lts
Pk-Pk Displacement mm (in)	51/63/76 (2/2.5/3)	51/63/76 (2/2.5/3)	50 lts to 8000 lts
Armature Resonance Hz (±5%)	2150	2150	2150
Useful Frequency Range Hz	DC-2350	DC-2250	DC-2100
Max. Static Payload Capacity kg (lb)	600 (1320)	600 (1320)	600 (1320)
Pneumatic Internal Load Support	Provided	Provided	Provided
Armature Auto Centering	Provided	Provided	Provided
Power Amplifier Specifications	PE45	PE56	PE64
Armature Power Supply	140V/360A	140V/410A	140V/460A
Field Power Supply	Built-in	Built-in	Built-in
Input Impedance	10 kΩ	10 kΩ	10 kΩ
Input Sensitivity	4 Vrms	4 Vrms	4 Vrms
Signal to Noise Ratio (SNR)	>80dB	>80dB	>80dB
Total Harmonic Distortion on resistive load	0.5%, typical	0.5%, typical	0.5%, typical
Sine Oscillator (1–5000 Hz)	Built-in	Built-in	Built-in
Modulation Range	DC-10 KHz	DC-10 KHz	DC-10 KHz
Coupling (to shaker)	Direct	Direct	Direct
Output Efficiency (%)	>90	>90	>90
Structure	Desktop, rack mounted	Modular, rack mounted	Modular, rack mounted
Safety Interlocks	Mains Over/under Voltage, Temperature PA, Temperature Shaker, Over Travel, Cooling Interlock, Phase Fail, Field Fail, Over Load, Auxiliary
Above specifications are standard specifications, subject to revision due to continuous improvement/ developmental activities without notice. However,
the specifications quoted by us in a proposal always supersede the printed/ published specifications.
Customized testing solutions and specifications are provided on demand.
