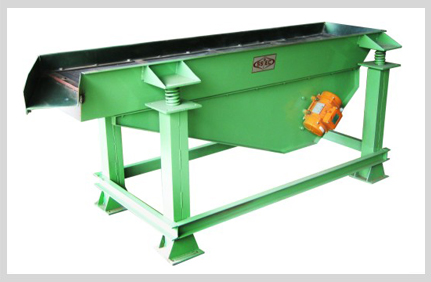

Vibratory Feeder

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Salient Features Vibratory Feeder is specially designed to feed the sand from one place to another The Top frame is made of Flats and Bars which is integral with the heavy-duty eccentric shaft....

View More Details

Send Enquiry

Company Information

Sree Sakthi Paper Mills

Koothattukulam, Ernakulam, Kerala

View Number

Member Since 19 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Salient Features

Vibratory Feeder is specially designed to feed the sand from one place to another
The Top frame is made of Flats and Bars which is integral with the heavy-duty eccentric shaft assembly.
The base frame is specially designed to withstand heavy shots and overload.
The Upper and Bottom Frames are supported on springs, which is designed in such a way that it will Transmit very less vibration effect to the base frame.

The Trough vibrates with higher efficiency, which is constant over the entire area, which gives the maximum achievable capacity
The Eccentric shaft runs on heavy duty double row self aligned spherical roller bearings, which is protected from dust housing and covers.
Oil tank is provided at the end of the shaft assembly to give the proper lubrication to the gears.
The Total Trough will vibrate with the help of the springs mounted with the base frame and Trough, due to the vibration produced the sand particle will move from its place and it will discharge through the discharge open.

MODEL	3 TON	5 TON
Batch Capacity	3 Ton / hr.	5 Ton / hr.
Frame Size	1200 x 600 x 400	2000 x 600 x 300
Motor	2 H.P	3 H.P
Drive	Eccentric Shaft	Double Eccentric Shaft
Spring	1 HP	2 HP
