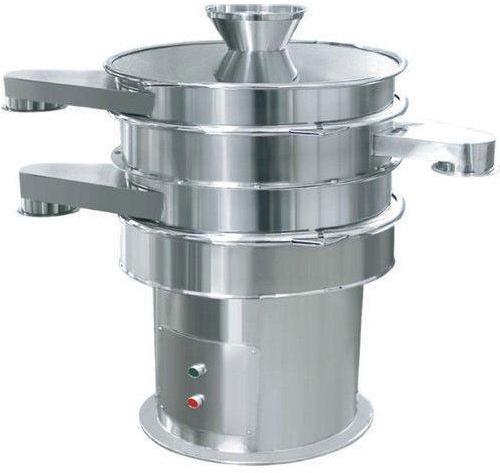

Contact SupplierVibro sifters are circular gyratory screens used to separate mass composition of solids, liquid form solid and for gradation of materials as per particle sizes. Vibration is generated in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The angle of lead of the lower weight to the up per weight provides variable screening pattern & output.
FEATURES -:
MODEL | 12” | 20” | 30” | 48” |
---|---|---|---|---|
Screen | Stainless Steel SS304/SS316 Quality & Different Mesh size as per Client Require | |||
Screen dia | 340 | 560 | 760 | 1220 |
Charging Height | 850 | 730 | 730 | 1100 |
Discharging Height | 480 | 520 | 520 | 800 |
Electric Motor | 0.18 HP | 0.5 HP, 415 V, 3 Phase, 50 Hz | 0.5 HP, 415 V, 3 Phase, 50 Hz | 2 HP, 415 V, 3 Phase, 50 Hz |
Over all Dimensions | 380 x380 x 850 | 600 x 600 x 800 | 770 x 770 x 800 | 1250 x 1250 x 1100 |
Net Weight | 55 Kgs | 125 Kgs | 175 Kgs | 225 Kgs |
Capacity Hours | 5 Kgs to 50 Kgs | 20 Kgs to 200 Kgs | 30 Kgs to 300 Kgs | 50 Kgs to 500 Kgs |
