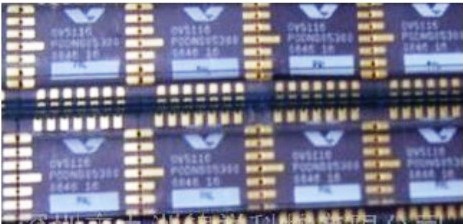

Video Camera Chip

We are offering video camera chip.
Product descriptiongeneral descriptionthe ov5116n is a complete black and white cmos video camera chip.it conforms to eiantsc (60 hz) standards and outputs composite video capable of directly driving a 75 ohm display device.the on-chip auto exposure allows for a wide range of lighting conditions,eliminating the need for external mechanical shutter components.this,along with its single supply,low power consumption makes the ov5116n an incredibly versatile and cost-effective video camera perfect for the following types of applications
product featurefeatures:single chip 14 inch format video image sensoreiantsc outputselectable mirror imageauto gain control (maximum + 18 db)high i.r. Sensitivity for nighttime applicationsauto and manal backlight compensation modegamma correction-onoffexternal frame sync capability40mw on-chip power consumptionexternal data acquisition supportsmear freeauto level expandingoptional edge enhancement
product specificationmodelsarray size 320*240 pixels effective image area 3.2*2.5mm auto electronic exposure(seconds) 160-16000 minimum illumination 0.5 lux @ f 1.4 (3000k) sn ratio 46 db (agc=1*) power supply 5vdc,+-5% power requirements (40 mw before loading),70mw standard loading package type 28 pin lcc
applicationapplications:securitysurveillancemachine visionprocess controlcctvinfant monitoringtoys
paymenttt
delivery1 days
originus
minimum order1
samplescharge
