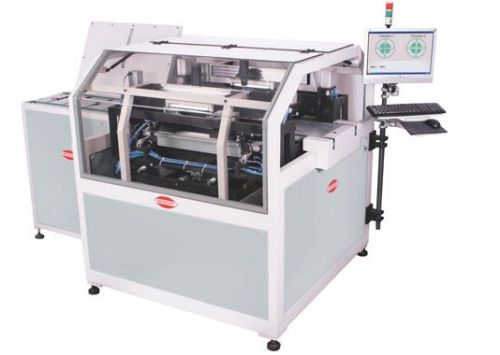

Video Punch & Bender For Web - Offset

PurityTwin CCD Colored Cameras With 80X Magnification,Optical Sensor For Conveyor Actuation,Servo Controlled 3 Axis Table With Suction,Three Point Register System For Pre-alignment,Can Be Connected In-line With All Types Of CTP Plate Setters,Customizable Convey
Number Of FlowerPlate Punch And Bender
Optional FeaturesIn-line Operation, Customized Units, Automatic Stacker
Installation RequirementNeeds Compressed Air Connection
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Video Plate PUnch & Bender is designed keeping in mind the growing demand of quality CTP Plates in commercial & newspaper Web Presses. The machine consists of : Twin CCD....

View More Details

Send Enquiry

Company Information

Memory Repro Systems (P) Ltd.

Kirti Nagar, Delhi

4.4/5

(20)

View Number

Member Since 15 Years
Nature of Business Retailer
GST No. 07AAACM2201J1ZY

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Video Plate PUnch & Bender is designed keeping in mind the growing demand of quality CTP Plates in commercial & newspaper Web Presses.

The machine consists of :

Twin CCD Colored Cameras with 80 X magnification.
Optical Sensor for actuating conveyor for transport of plates for punching & bending in one cycle.

Three Point Register System for pre-alignment.

Servo controlled 3 Azis table with suctiion ensures aligning of the register mark on the plates with the preset master for accurate punching & bending.

Optional :

In- line Operation - The machine can be connected in-line to with all types of CTP Plate setters.
Customized Conveyor & Bump turn units,
Automatic Plate Stacker.

Note : Needs Compressed Air Connection at the time of installation at customer end.

Technical Specifications

Technical Specifications	Model 'A'	Model 'B'
Length	1330 mm	1530 mm
Width	870 mm	1070 mm
Height	2080 mm	2330 mm
Light Source	Power Load	Line Voltage
1 KW	1.5 KW	220 V Single Phase, Neutral & Earth
3 KW	3.5 KW	440 V Three Phase, Neutral & Earth
7 KW	7.5 KW	440 V Three Phase, Neutral & Earth

Details

Technical Specifications	Model 'A'
Plate Size	900 x 650 mm
Output Speed	Upto 200 plates / hour
Positioning accuracy	+_0.015 mm
Input tolerances	+-0 01-0.05 mm
Screen	TFT 19
Power	1.5 KW/220 Volts/ 50 Hz
Dimensions (LxWxH)	1500 x 1400 x 1500 mm
Net Weight	800 kgs
