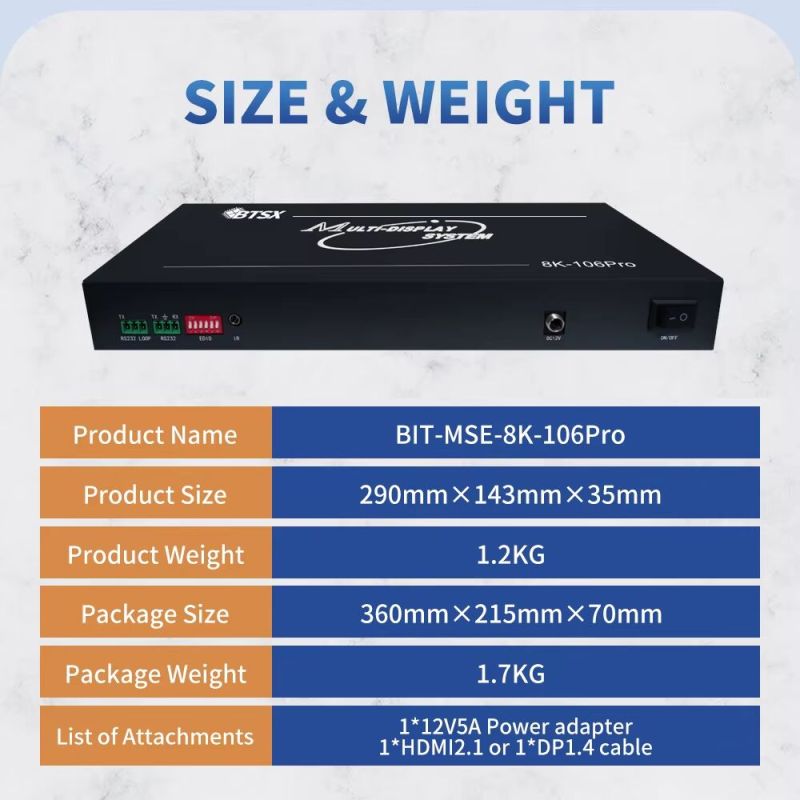

LCD Video Walls 360mm×215mm×70mm, Brand Name : Bitvisus

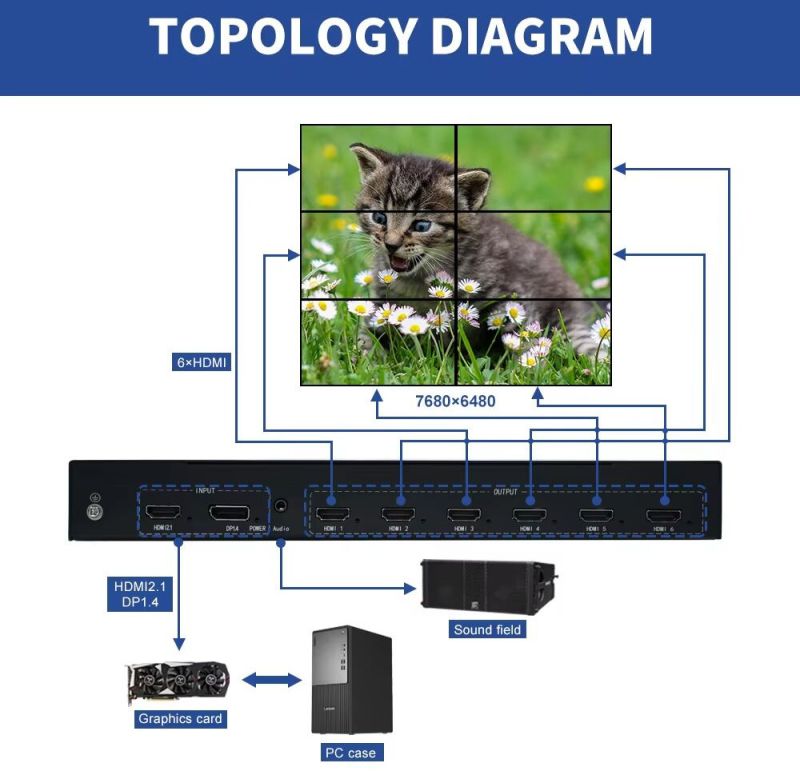

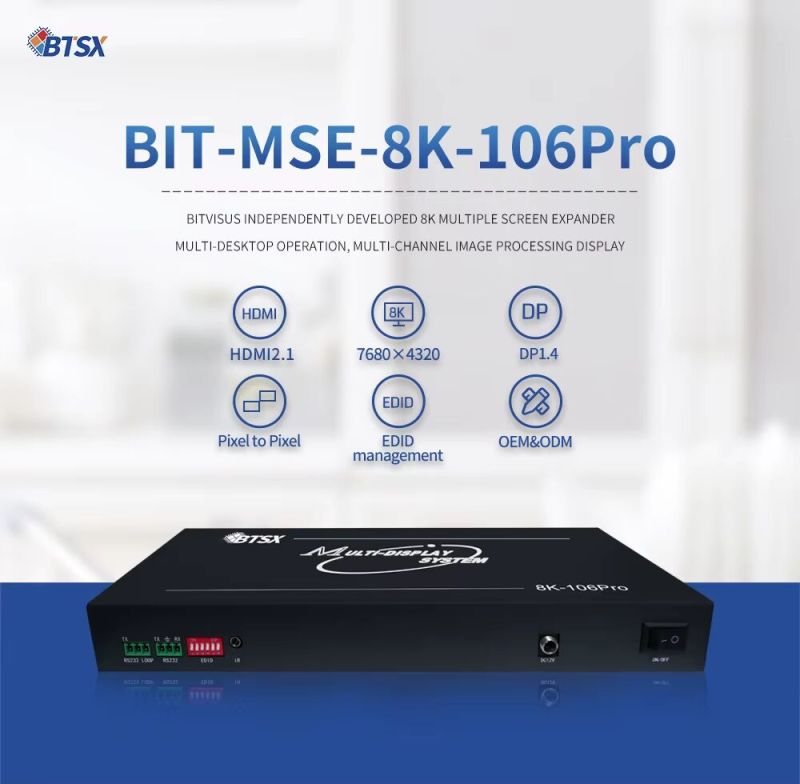

BIT-MSE-8K-106Pro 8K Multi-Screen Expander - Professional Multi-Display Splicing Solution Product Overview The BIT-MSE-8K-106Pro is an industrial-grade 8K Multi-Screen Expander developed by BITVISUS, designed for high-performance multi-desktop operations and multi-channel video processing. It supports 2-channel 8K input (HDMI 2.1 or DP 1.4) and delivers 6-channel 4K HDMI output, ensuring ultra-high-definition, seamless, and stable video distribution. Ideal for applications like large-scale video walls, virtual reality, control rooms, exhibitions, digital signage, and multi-screen projection systems. Key Features ✅ Dual 8K Input – Supports HDMI 2.1 & DP 1.4 for flexible connectivity.✅ 6x 4K HDMI Output – Downscales to 1080P/1200P/1440P/1600P/2160P/2400P for versatile display setups.✅ Pixel-Perfect Splicing – Supports 1×N, N×1, M×N configurations with no distortion or stretching.✅ Ultra-High Resolution – Max input resolution 7680×4800@30Hz, output up to 3840×2400@30Hz.✅ Industrial-Grade Stability – 6-layer PCB, 16KV ESD protection, 18W thermal dissipation for 24/7 operation.✅ Multi-Device Parallel Support – Expandable for large-scale video walls (e.g., 15360×4320@30Hz).✅ Low Latency & Real-Time Processing – FPGA-based hardware acceleration for zero-delay performance.✅ Energy Efficient – 50W power consumption, eco-friendly design with overheat protection.✅ Wide Compatibility – Works with NVIDIA Surround/AMD Eyefinity for multi-GPU setups. Technical Specifications CategorySpecifications Input Ports 1×HDMI 2.1, 1×DP 1.4 (Copper cable ≤3m) Output Ports 6×HDMI 1.4 (Copper cable ≤10m) Max Input Resolution 7680×4320@30Hz (2×2), 5760×2160@60Hz (2×3), 1920×7200@60Hz (6×1) Max Output Resolution 3840×2400@30Hz, 2560×1600@60Hz, 1920×1200@120Hz Color Depth 8-bit (RGB444, YUV444, YUV422) HDCP Support HDCP 2.2 Power Supply 12V/5A DC (Adapter Included) Power Consumption 50W (Typical) Operating Temperature 0°C ~ 50°C Dimensions (L×W×H) 290×143×35mm Weight 1.2kg (Product), 1.7kg (Packaged) Warranty 3 Years Supported Splicing Modes & Resolutions Common Output Resolutions Output ResolutionSplicing ModesInput Resolution Required 1920×1080@60Hz 2×2, 2×3, 6×1 3840×2160@60Hz, 5760×2160@60Hz, 1920×6480@60Hz 1920×1200@120Hz 1×3, 4×1, 2×2 5760×1200@120Hz, 1920×4800@120Hz, 3840×2400@120Hz 2560×1440@60Hz 3×1, 4×1 2560×4320@60Hz, 2560×5760@60Hz 3840×2160@30Hz 2×2, 3×1 7680×4320@30Hz, 3840×6480@30Hz Multi-Screen Configurations 3-Screen: 1×3 (5760×1080@120Hz), 3×1 (2560×4320@60Hz) 4-Screen: 2×2 (3840×2160@120Hz), 4×1 (1920×4320@120Hz) 6-Screen: 2×3 (5760×2160@60Hz), 6×1 (1920×7200@60Hz) (For custom configurations, contact our technical team.) Package Contents 1× BIT-MSE-8K-106Pro Main Unit 1× 12V/5A Power Adapter 1× HDMI/DP Cable (Optional) User Manual Applications ✔ Video Walls (LED/LCD/LED)✔ Control Rooms & Command Centers✔ Virtual Reality (VR) & Simulation✔ Digital Signage & Advertising Displays✔ Exhibition Halls & Museums✔ Multi-Screen Gaming & Broadcasting Why Choose BITVISUS? 🔹 Industrial-Grade Durability – Stable 24/7 operation in harsh environments.🔹 Zero Latency – FPGA-based real-time processing.🔹 Global Support – 3-year warranty & technical assistance. 📞 Contact Us: Email: eddie.jia@ whatapp:+852 92780424 Website: TRANSLATE with x English Arabic Hebrew Polish Bulgarian Hindi Portuguese Catalan Hmong Daw Romanian Chinese Simplified Hungarian Russian Chinese Traditional Indonesian Slovak Czech Italian Slovenian Danish Japanese Spanish Dutch Klingon Swedish English Korean Thai Estonian Latvian Turkish Finnish Lithuanian Ukrainian French Malay Urdu German Maltese Vietnamese Greek Norwegian Welsh Haitian Creole Persian     TRANSLATE with COPY THE URL BELOW Back EMBED THE SNIPPET BELOW IN YOUR SITE Enable collaborative features and customize widget: Bing Webmaster Portal Ba
