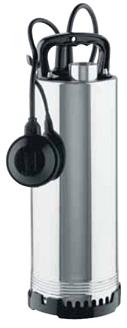

Vigila SS Drainage Pump

Applications

Drainage of infiltration water, empty swimming-pools, operation in decorative fountains and waterfalls.

• Discharge cover, pump casing, motor casing and filter in stainless steel AISI 304.
• Impeller in elastomer plastic, reinforced with steel sheet.
• Pump direction mounting and foot in tecnopolimer.
• Motor shaft in stainless steel AISI 420.
• Mechanical seal in silicon carbide/ alumine oxide.
• O-rings in NBR.

• Asynchronous, two poles.
• IP 68 protection.
• Class F insulation
• Continuous operation.
• Built-in thermal protection.

• Maximum passage of solids: 8mm.
• Maximum immersion: 9m.
• Maximum liquid temperature: 40°C.

• Supplied with 10m of electrical cable.
• Integral capacitor.
• Vigila SS: without floating level switch.
• Vigila SS A: with floating level switch.
