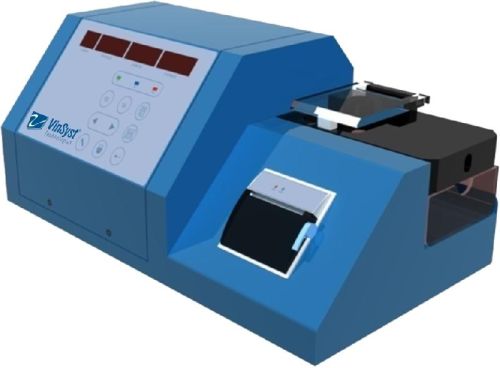

Vinsyst Technologies Tablet Tester Hardness

Vinsyst tablet tester vt 3 measures three parameters of a tablet: thickness, diameter and hardness.
Vinsyst digital tablet testers are compliant with ep and usp pharmacopoeia. The vt series combines the accuracy and precision of a microprocessor controlled instrument.
The ergonomic design makes tablet insertion quick and convenient and the jaws automatically adjust for most of tablet shape. Its rugged design is perfect for on-line testing in production areas.
specifications:
parameters range units accuracy
thickness 1.5 - 35 millimeters inches +- 0.05 mm
diameter 1.5 - 35 millimeters inches +- 0.05 mm
hardness 5 - 500 n, kp, sc +- 1 n
• display illuminated led display
• interface rs 232 interface for connecting with pc
• parallel printer interface for dot matrix printer
salient features:
• measures the thickness, diameter and hardness of the tablet.
• smd technology and compact in size
• unit of hardness in newton (n), kilopond (kp), strong cobb (sc)
• upto 99 test statistics
• password protection and factory setting reset
• self diagnosis and fault localization
• calibration and validation : simple & easy calibration
• 3 point calibration
standard accessories
standard jaw plate, safety shield, brush and tablet collection tray, embedded software, allen key (4mm) and screw driver, mains cord
optional accessories
certified stainless steel gauge block 10mm
calibration weight (5kg)
delivery: 3-4 weeks
price: rs. 2,90,000
