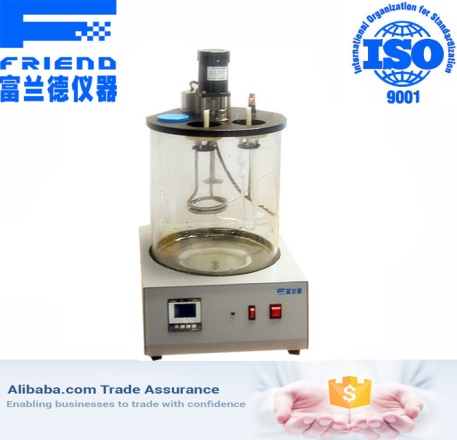

Friend Viscosity Testing Equipment

Scope
applicable for people's republic of china standard gb t265 "petroleum products determination of kinematic viscosity and calculation of dynamic viscosity" provisions, the determination of liquid petroleum products (refer to newtonian fluid) the kinematic viscosity at a constant temperature. Kinematic viscosity of the liquid at a constant temperature measured kinematic viscosity and density of the product at the same temperature of the liquid.
Features
1, using high quality imported sensor, more accurate temperature control, lower failure rate.
2, the use of insulation materials, temperature performance is much better than the old cylinder.
3,2 pilot holes may be tested at the same time, more efficient and more convenient.
4, specially designed viscometer fixture, convenient and reliable clamping.
5, using high-precision temperature control system, automatic control, temperature can reach ± 0.1 ℃.
6, heating power automatically switches both rapid warming, but also precise temperature control.
7, φ300 × 300mm standard thermostatic bathtub, greater capacity, more accurate thermostat.
8, strong motor stirring, temperature field uniformity, so that the test data with good repeatability.
Technical parameters
1 power supply: ac 220v ± 10%, 50hz ± 5%.
2 heating power: two tranches, 2500w
3, stirring motor: power 6w; speed 1200r min.
4, temperature range: room temperature ~ 100 ℃.
5, temperature control accuracy: ± 0.1 ℃.
6, constant temperature bath: capacity, 20l; new insulation using double cylinder
7, the use of environment: temperature -10 ℃ ~ + 35 ℃, relative humidity
